Description

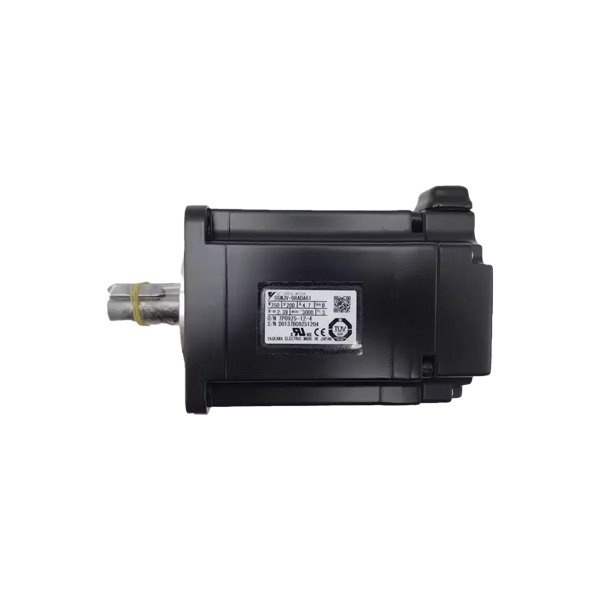

The Yaskawa SGMJV-08ADA61 is a high-performance Medium-Inertia Rotary Servo Motor from the renowned Sigma-V series. Designed for demanding industrial automation tasks, this motor delivers exceptional torque density and smooth operation across a wide speed range. Featuring a compact flange-mount design and IP65-rated enclosure (excluding shaft opening), it is built to withstand harsh industrial environments. Equipped with a high-resolution 20-bit incremental encoder and compatible with Sigma-V servo amplifiers (e.g., SGDV series), this motor ensures precise positioning and speed control for applications requiring robust performance and reliability.
Key Features
- Medium-Inertia Rotary Servo Motor optimized for general-purpose automation
- Encoder: High-resolution 20-bit incremental encoder for precise feedback
- Brake Configuration: Standard model without holding brake
- Shaft Configuration: Straight shaft with keyway for secure torque transmission
- Cooling: Fully enclosed self-cooling (IP65 rating)
- Country of Origin: Japan (Yaskawa Electric Corporation)
Technical Specifications
- Model: SGMJV-08ADA61
- Series: Sigma-V (Σ-V)
- Rated Output: 750 W
- Rated Torque: 2.39 Nm
- Instantaneous Peak Torque: 8.36 Nm (350% of rated torque)
- Rated Speed: 3000 rpm
- Maximum Speed: 6000 rpm
- Power Supply Voltage: AC200V
- Encoder Resolution: 20-bit incremental (1,048,576 pulses/rev)
- Ambient Operating Temperature: 0°C to +40°C (non-freezing)
- Ambient Humidity: 20% to 80% RH (non-condensing)
- Protection Rating: IP65 (excluding shaft opening)
- Insulation Class: Class B (130°C)
- Mounting: Flange mount
- Vibration Level: V15.
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and tuning
- Compatibility verification with Sigma-V servo amplifiers
- Wiring and installation guidance available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Yaskawa components with full traceability
- Global supply network with competitive pricing
- Expertise in industrial automation and motion control systems
- Comprehensive technical documentation and datasheets
- Responsive customer service and support
Applications
- Industrial Robotics: Articulated arm joints and gripper axes
- Machine Tools: Axis drives for milling and turning centers
- Semiconductor Manufacturing: Wafer handling and positioning stages
- Packaging Machinery: Intermittent motion for filling and sealing
- Material Handling: Conveyor drives and indexing tables
