Description

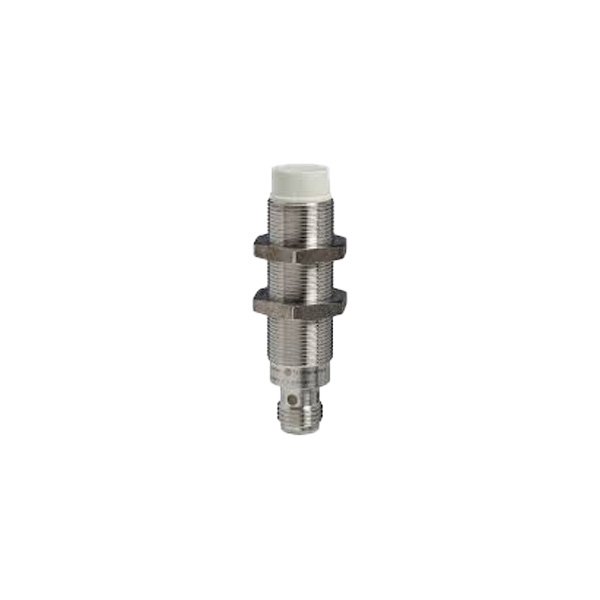

The XS218 series from Schneider Electric (Telemecanique) are high-performance inductive proximity sensors designed for industrial automation. These M18 barrel sensors feature a metal housing (nickel-plated brass) and offer reliable detection of metallic objects. The series includes models with different output types (PNP/NPN) and connection styles (M12 connector or 2m cable), providing flexibility for various control system requirements. With a sensing range of 8mm and IP67 protection, they are suitable for harsh industrial environments, including machine tools, packaging, and material handling.
Key Features
- Inductive Proximity Sensor with metal housing (nickel-plated brass)
- Sensing Range: 8 mm
- Output Configuration: PNP (BLP) or NPN (BLN) (selectable by model)
- Connection: M12 4-pin connector (M12) or 2m cable (L2)
- Protection Rating: IP67
- Operating Temperature: -25°C to +70°C
- Response Time: Fast response for high-speed applications
- Country of Origin: France (Schneider Electric)
Technical Specifications
- Supply Voltage: 10-36 V DC
- Current Consumption: ≤ 10 mA (no-load)
- Output Type: PNP or NPN (push-pull)
- Output Current: ≤ 200 mA
- Switching Frequency: ≤ 500 Hz
- Housing Material: Metal (Nickel-plated brass)
- Dimensions: M18 x 1 thread, Length varies by model (approx. 53-64mm)
- Weight: approx. 50-60 g
- Connection Type: M12 male connector (4-pin) or 2m cable
- Protection Class: IP67
- Standards: CE, UL, CSA, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Schneider Electric components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection in automated production lines
- Material handling and conveyor systems
- Packaging machinery
- Robotics and automation
- Machine safety and position monitoring
- Assembly machines and machine-tools
