Description

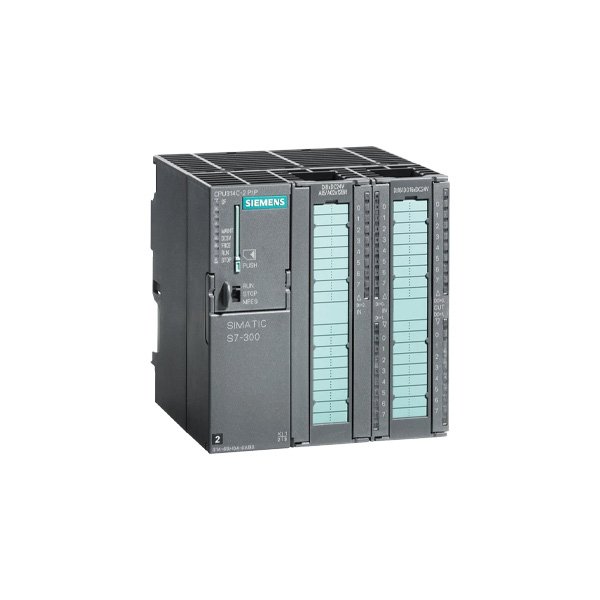

The Siemens SIMATIC S7-300 series Compact CPUs, models 6ES7314-6BH04-0AB0 (CPU 314C-2 PN/DP) and 6ES7314-6CH04-0AB0 (CPU 314C-2 PtP), are all-in-one programmable controllers designed for medium-scale automation tasks. These robust units integrate a CPU, digital/analog I/O, and high-speed counters into a single module, eliminating the need for separate I/O cards in many applications. The 6BH04 features built-in PROFINET and PROFIBUS DP communication, while the 6CH04 features PROFIBUS DP and serial point-to-point (PtP) communication. With IP20 protection and a wide operating temperature range, they are ideal for stand-alone machine control, process automation, and distributed I/O systems.
Key Features
- Compact CPU with integrated I/O and communication
- Work Memory: 384 KB
- Integrated I/O: 24 DI/16 DO, 4 AI/2 AO (see table for details)
- Communication:
- 6ES7314-6BH04-0AB0: PROFINET (2 ports) + PROFIBUS DP
- 6ES7314-6CH04-0AB0: PROFIBUS DP + RS422/485 PtP
- High-Speed Counters: 4 channels (up to 60 kHz)
- Protection Rating: IP20
- Operating Temperature: 0°C to 60°C
- Country of Origin: Germany
Technical Specifications
Parameter | Specification (Common) | Model-Specific |
|---|---|---|
Article Number | 6ES7314-6BH04-0AB0 / 6ES7314-6CH04-0AB0 | – |
CPU Type | 314C-2 PN/DP (6BH04) / 314C-2 PtP (6CH04) | – |
Work Memory | 384 KB | – |
Integrated DI | 24 points, 24V DC, sink/source | – |
Integrated DO | 16 points, 24V DC, 0.5A | – |
Integrated AI | 4 channels, ±10V or 0-20mA, 12-bit | – |
Integrated AO | 2 channels, ±10V or 0-20mA, 12-bit | – |
HSC Counters | 4 channels, up to 60 kHz | – |
Communication Port 1 | MPI/PROFIBUS DP (9-pin Sub-D) | Both models |
Communication Port 2 | PROFINET (2 RJ45, switch) | 6BH04 only |
Communication Port 2 | RS422/485 (15-pin Sub-D, PtP) | 6CH04 only |
Power Supply | 24 VDC (20.4-28.8 V) | – |
Backup Time | Typically 10 years (with Supercap) | – |
Dimensions (WxHxD) | 120 mm × 125 mm × 130 mm | – |
Weight | Approx. 750 g | – |
Programming Software | STEP 7 V5.x / TIA Portal | – |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for model selection and basic configuration
- Wiring and commissioning assistance
- Compatibility verification with existing systems (PROFIBUS/PN network)
- Diagnostics and troubleshooting support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation and PLC systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Packaging machinery control
- Material handling and conveyor systems
- Small to medium process automation
- Building automation systems
- Machine tool control
- Distributed I/O systems
