Description

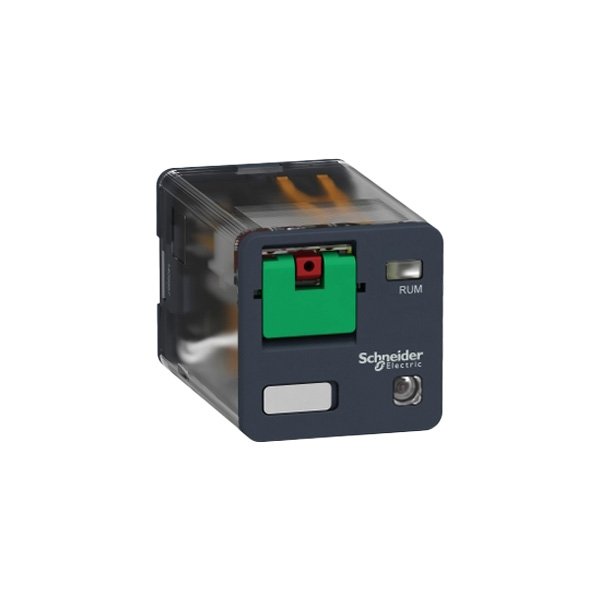

The Schneider Electric RUMC32P7 is a high-performance Universal Plug-in Relay from the Harmony series, designed for industrial control and automation applications. This relay features a 3 Form C (3 CO) contact configuration with a robust rating of 10A at 250V AC, making it suitable for switching motor loads and control circuits. It is equipped with a 230V AC coil and cylindrical pins for secure plug-in installation. The relay includes a lockable test button for safe manual operation and a status LED for visual indication of coil energization. With its universal design, it offers flexibility for various control panel layouts and is compatible with standard sockets.
Key Features
- Universal Plug-in Relay with 3 Form C (3 CO) contacts
- Contact Rating: 10A at 250V AC
- Coil Voltage: 230V AC
- Pin Type: Cylindrical pins for reliable connection
- Features: Lockable test button, Status LED indicator
- Protection Rating: IP20 (when installed in appropriate socket)
- Country of Origin: Germany
Technical Specifications
Parameter | Specification |
|---|---|
Supply Voltage | 230V AC (50/60 Hz) |
Coil Power Consumption | ~3 VA |
Contact Configuration | 3 Form C (3 CO) |
Rated Current (Ie) | 10A |
Rated Voltage (Ue) | 250V AC / 28V DC |
Switching Capacity | 2500 VA / 280 W |
Mechanical Life | 5,000,000 cycles |
Electrical Life | 100,000 cycles (resistive) |
Operate/Release Time | ~20 ms |
Termination Style | Plug-in (Cylindrical Pins) |
Mounting | Socketable (Requires compatible socket) |
Operating Temperature | -40°C to +55°C |
Standards | CE, UL, CSA, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and socket compatibility assistance
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Schneider Electric components
- Global supply network with competitive pricing
- Expertise in industrial control and automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Motor Control: Switching and controlling small motors
- Control Circuits: Logic and interlock circuits in automation panels
- Lighting Control: Switching industrial lighting loads
- Heating Systems: Control of heating elements and contactors
- Machine Automation: General-purpose switching in machinery
