Description

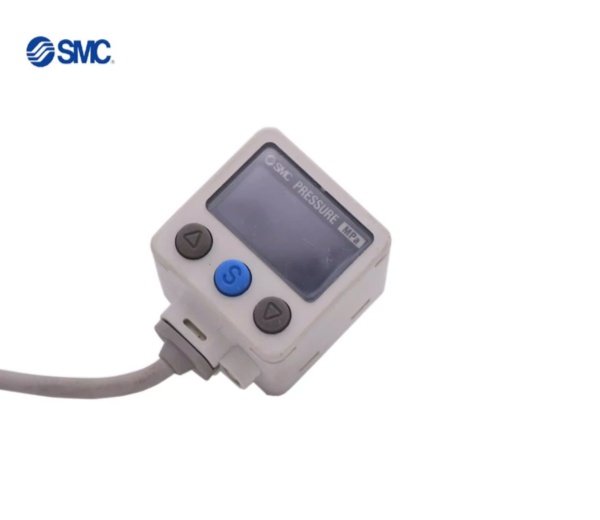

The SMC ZSE40-01-22L is a high-precision digital pressure switch designed for industrial automation and control applications. This device features a 2-color LED display that provides clear visual feedback of pressure status, making it ideal for monitoring vacuum or pressure levels in pneumatic systems. It offers high accuracy and reliability with its digital technology, allowing for easy setup and adjustment of set points. The unit is equipped with an R1/8 port for easy installation and is designed to operate with a supply voltage of 12-24V DC. It supports both digital and analog outputs, providing flexibility for various control requirements. With its compact design and robust construction, it is suitable for use in harsh industrial environments.
Key Features
- High Precision Digital Pressure Switch with 2-color LED display
- Pressure Range: 0 to -14.59 psi (Vacuum Switch)
- Supply Voltage: 12-24V DC ±10%
- Port Size: R 1/8
- Output Configuration: Digital (NPN) and Analog outputs
- Protection Rating: IP65
- Compliance: CE, UL/CSA, RoHS
- Country of Origin: USA
Technical Specifications
Parameter | Specification |
|---|---|
Model Number | ZSE40-01-22L |
Product Type | Digital Pressure Switch |
Rated Pressure Range | 0 to -14.59 psi |
Supply Voltage | 12-24V DC ±10% |
Current Consumption | ≤ 70 mA |
Output Type | Digital (NPN), Analog Voltage |
Port Size | R 1/8 |
Display | 2-color LED (Red/Green) |
Operating Temperature | -10°C to +50°C |
Storage Temperature | -25°C to +60°C |
Protection Class | IP65 |
Housing Material | Plastic (VISTAL®) |
Weight | approx. 48 g |
Connection | Cable with Connector (Length: 2m) |
Standards | CE, UL/CSA, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine SMC components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Vacuum pressure monitoring in automated production lines
- Leak testing and quality control systems
- Packaging machinery and material handling
- Robotics and automation
- Machine safety and position monitoring
- Supply pressure verification in pneumatic systems
