Description

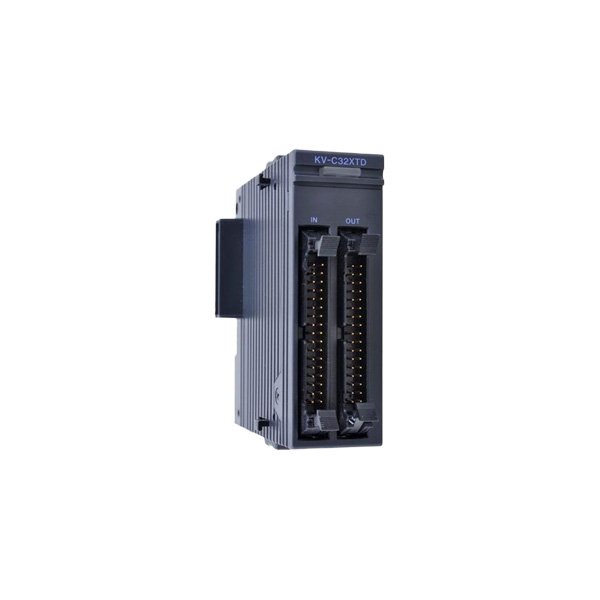

The KEYENCE KV-C32XTD is a high-density 32-point mixed I/O unit designed for the KV-8000/5000/3000 series PLCs. This module combines 32 digital inputs and 32 digital outputs in a single compact unit, offering significant space savings in control cabinets. It features MOSFET output technology with built-in overcurrent protection for enhanced reliability. With its connector-type wiring (MIL specification), it supports fast installation and maintenance, making it ideal for applications requiring high I/O density and robust performance in industrial automation environments.
Key Features
- Series: KV-8000/5000/3000 Series
- Module Type: Input/Output Mixed Unit
- Channels: 32 Input Points + 32 Output Points
- Input Mode: 24 VDC Mode
- Output Form: MOSFET (N-ch) with Overcurrent Protection
- External Connection: Connector (MIL Specification)
- Common Point Mode: Input: 32 points/1 common (2 terminals); Output: 32 points/1 common (2 terminals)
- Country of Origin: Japan
Technical Specifications
- Input Points: 32 points
- Input Rated Voltage: 24 VDC, 4.1 mA
- Input Impedance: 5.6 kΩ
- Output Points: 32 points
- Output Form: MOSFET (N-ch) with Overcurrent Protection
- Rated Load: 30 VDC, 0.2 A
- Leak Current at OFF: 100 µA or less
- Residual Voltage at ON: 0.5 V or less
- Operating Time: OFF to ON: 100 µs or less; ON to OFF: 300 µs or less
- Internal Current Consumption: 65 mA or less
- Weight: Approx. 130 g
- Standards: CE, UL, CSA
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine KEYENCE components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- High-density I/O control in machine automation
- Conveyor systems and material handling
- Packaging machinery
- Assembly line control
- General industrial control systems
