Description

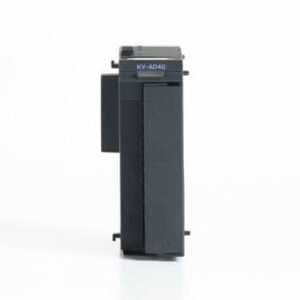

The KEYENCE KV-AD40 is a standard 4-channel A/D (Analog-to-Digital) conversion unit designed for the KV-8000 series PLCs. This module is engineered to convert analog signals from field devices—such as pressure transmitters, temperature sensors, and flow meters—into high-resolution digital data for the PLC. It supports a wide range of input signals, including both voltage and current, making it a versatile choice for various process measurement and control applications. With its reliable performance and simple configuration, it serves as a fundamental building block for integrating analog signals into KEYENCE automation systems.
Key Features
- Series: KV-8000 Series
- Module Type: Standard A/D Conversion Unit (Analog Input)
- Channels: 4 input channels
- Input Types: Voltage (-10 to +10V, 0 to 10V, 0 to 5V, 1 to 5V) / Current (0 to 20mA, 4 to 20mA)
- Resolution: 1/4,000
- Speed: 80 µs/channel
- Insulation: Photocoupler insulation between unit and CPU
- Country of Origin: Japan
Technical Specifications
- Supply Voltage: Via backplane from PLC base unit
- Internal Current Consumption: 90 mA or less
- Conversion Accuracy: ±0.2% of F.S. (at 25°C)
- Input Resistance: Voltage: 1 MΩ, Current: 250 Ω
- Operating Temperature: 0 to 50°C
- Storage Temperature: -25 to 70°C
- Weight: Approx. 145 g
- Standards: CE, UL, CSA
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine KEYENCE components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Process variable monitoring (pressure, temperature, flow, level)
- Analog signal acquisition from sensors and transmitters
- Quality inspection systems
- Data logging and reporting
- Basic process control loops
