Description

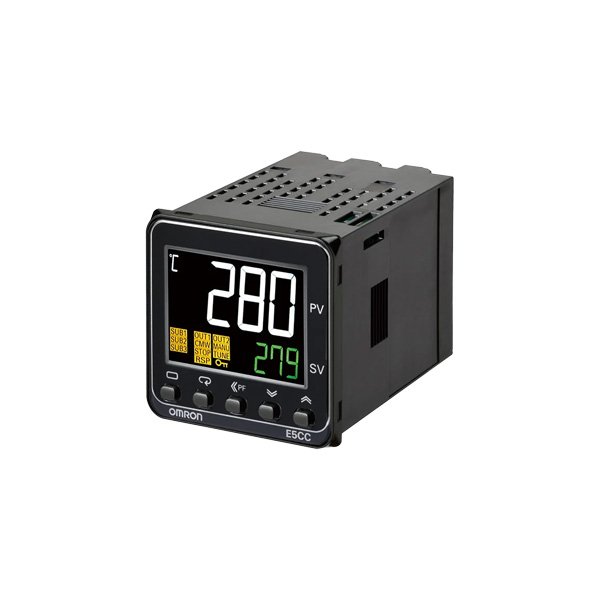

The Omron E5CC-RX2ASM-800 is a high-precision digital temperature controller from the E5CC series, designed for industrial heating and cooling applications. This compact 48x48mm (1/16 DIN) controller features a large white PV display for excellent visibility and supports universal sensor inputs including thermocouples, RTDs, and analog signals. It offers advanced 2-PID control with auto-tuning for stable temperature regulation and includes one main relay output for control and two auxiliary relay outputs for alarms or other functions. With its simple operation and robust design, it is ideal for panel mounting in various industrial environments.
Key Features
- Digital Temperature Controller with large white PV display (15.2mm height)
- Universal Input: Supports thermocouple, Pt, and analog current/voltage
- Control Output: Relay output (SPST-NO, 250VAC, 3A)
- Auxiliary Outputs: 2 relay outputs (SPST-NO, 250VAC, 1A)
- Control Method: ON/OFF or 2-PID control (with auto-tuning)
- High-Speed Sampling: 50 ms
- Communication: RS-485 (Modbus/CompoWay/F)
- Protection Rating: IP66 (with optional cover)
- Country of Origin: Japan
Technical Specifications
Parameter | Specification |
|---|---|
Model Number | E5CC-RX2ASM-800 |
Supply Voltage | 100 to 240 VAC, 50/60 Hz |
Power Consumption | ≤ 5.2 VA |
Input Types | Thermocouple (K, J, T, E, L, U, N, R, S, B, W, PL II), Pt100/JPt100, Analog (4-20mA, 0-10V) |
Indication Accuracy | Thermocouple: ±0.3% PV, Pt: ±0.2% PV, Analog: ±0.2% FS |
Control Output 1 | Relay, 250 VAC, 3 A (resistive load) |
Auxiliary Outputs | 2 relays, 250 VAC, 1 A (resistive load) |
Sampling Period | 50 ms |
Ambient Temperature | -10°C to +55°C (no condensation) |
Storage Temperature | -25°C to +65°C |
Dimensions (WxHxD) | 48 mm × 48 mm × 60 mm |
Weight | Approx. 150 g |
Terminal Type | Screw terminals |
Standards | CE, UL, CSA, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial ovens and furnaces
- Plastic injection molding machines
- Food processing and packaging equipment
- HVAC systems
- Laboratory and test equipment
- Machine tool temperature control
