Description

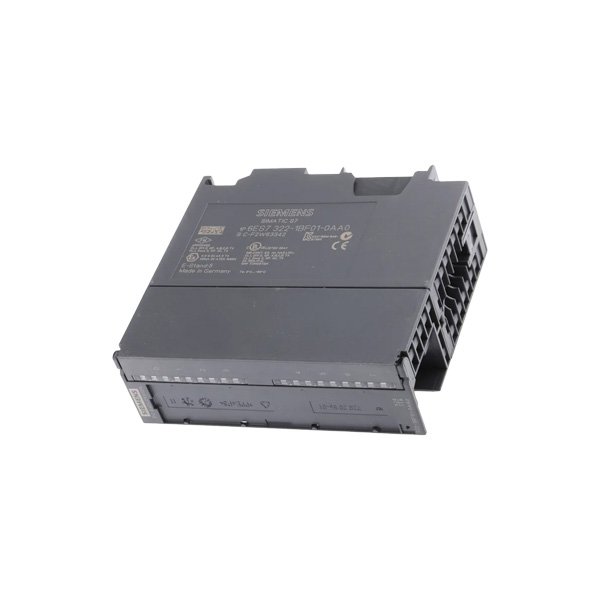

This listing includes three high-performance digital output modules from the Siemens SIMATIC S7-300 series. The 6ES7322-1BF01-0AA0 is an 8-channel module with transistor outputs for 24V DC loads, offering high switching frequency. The 6ES7322-1HF01-0AA0 is an 8-channel module with relay outputs, providing the flexibility to control both AC and DC loads. The 6ES7322-1HH01-4AA1 is a 16-channel module with relay outputs, designed for applications requiring a higher number of outputs. All modules feature optical isolation and are designed for reliable operation in industrial environments.
Key Features
- 6ES7322-1BF01-0AA0: 8 digital outputs, Transistor, 24V DC, 0.5A
- 6ES7322-1HF01-0AA0: 8 digital outputs, Relay, 24-230V AC/DC, 2A
- 6ES7322-1HH01-4AA1: 16 digital outputs, Relay, 24-230V AC/DC, 2A
- Isolation: Optically isolated for safety and noise immunity
- Connection: 20-pin front connector for easy wiring
- Status Indication: LED indicators for each channel
- Country of Origin: Germany
Technical Specifications
- Model: 6ES7322-1BF01-0AA0 / 6ES7322-1HF01-0AA0 / 6ES7322-1HH01-4AA1
- Type: Digital Output Module
- Supply Voltage: 24V DC
- Output Type: Transistor (1BF01) / Relay (1HF01, 1HH01)
- Number of Channels: 8 (1BF01, 1HF01) / 16 (1HH01)
- Load Voltage: 24V DC (1BF01) / 24-230V AC/DC (1HF01, 1HH01)
- Output Current: 0.5A (1BF01) / 2A (1HF01, 1HH01)
- Switching Frequency: Up to 100 Hz (1BF01) / 2 Hz (1HF01) / 1 Hz (1HH01)
- Dimensions: 40 mm x 125 mm x 120 mm (W x H x D)
- Protection Class: IP20
- Standards: CE, UL, cULus, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mounting assistance
- Compatibility verification with existing S7-300 systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Automated Production Lines: For controlling actuators, valves, and indicators
- Material Handling: Conveyor system control and motor starters
- Packaging Machinery: Output for solenoids and contactors
- Process Control: Control of pumps, fans, and heating elements
- Building Automation: Control of lighting and HVAC systems
