Description

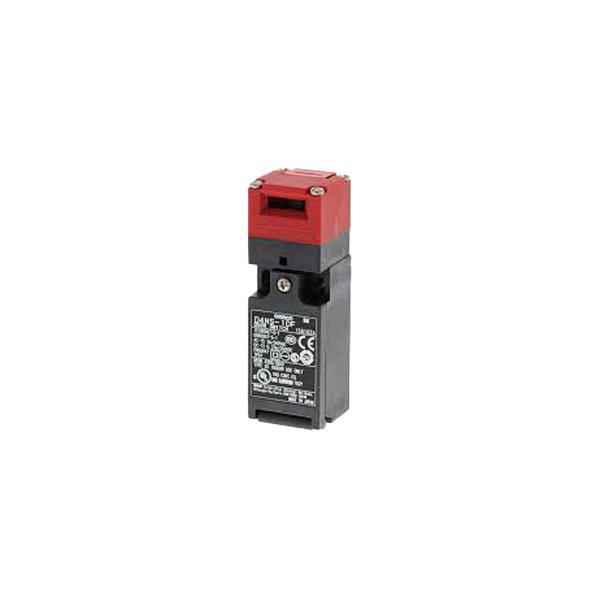

The D4DS-K1, D4NS, and D4NS-SK are a comprehensive range of safety interlock switches and accessories designed for safeguarding access points in industrial machinery. This “New Generation” series is known for its multi-contact configurations, labor-saving features, and environmentally friendly design. The D4NS series is the main switch body, the D4DS-K1 is a horizontal-mounting operation key (actuator), and the D4NS-SK is a slide key unit. These components are engineered to prevent accidental machine start-up when guards or doors are open, ensuring operator safety.
Key Features
- Multi-Contact Configurations: Available in 1NC/1NO, 2NC, 2NC/1NO, and 3NC contact forms for versatile safety circuit design.
- Labor-Saving Installation: M12 connector models are available for quick and easy replacement, reducing downtime.
- Direct Opening Mechanism: Certified direct opening contacts ensure a positive mechanical disconnection for high safety integrity (EN 60947-5-1).
- High Reliability: Standardized gold-clad contacts provide high contact reliability and are suitable for both standard loads and micro loads.
- Environmentally Friendly: Free of lead, cadmium, and hexavalent chrome, reducing the environmental burden.
- Versatile Mounting: D4NS head can be mounted in four directions, and operation keys (D4DS-K1) are designed for horizontal mounting applications.
Technical Specifications
Parameter | Specification |
|---|---|
Series | D4NS / D4NS-SK |
Key Type | D4DS-K1 (Horizontal Mounting) |
Conduit/Connector | Pg13.5, G1/2, M20, M12 Connector |
Contact Configuration | 1NC/1NO, 2NC, 2NC/1NO, 3NC |
Rated Voltage/Current | 250 VAC / 10 A |
Key Insertion/Extraction Force | 15 N max / 30 N max |
Pretravel (PT) | 6±3 mm |
Total Travel (TT) | 28 mm |
Direct Opening Force/Stroke | 60 N min / 10 mm min |
Mechanical Durability | 20,000 operations min |
IP Rating | IP67 |
Standards | Conforms to Machinery Directive, Low Voltage Directive, UL, CSA |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for safety circuit design and interlock configuration
- Wiring and mounting assistance for D4NS, D4DS-K1, and D4NS-SK
- Safety compliance verification for your specific application
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron STI components
- Global supply network with competitive pricing
- Expertise in safety interlock systems and machine guarding
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Guard locking and interlocking for machine tools
- Safety access control on robotic cells
- Protection of personnel within safeguarded space
- Sliding, hinged, and removable guards
- Presses, injection molding machines, and packaging equipment
