Description

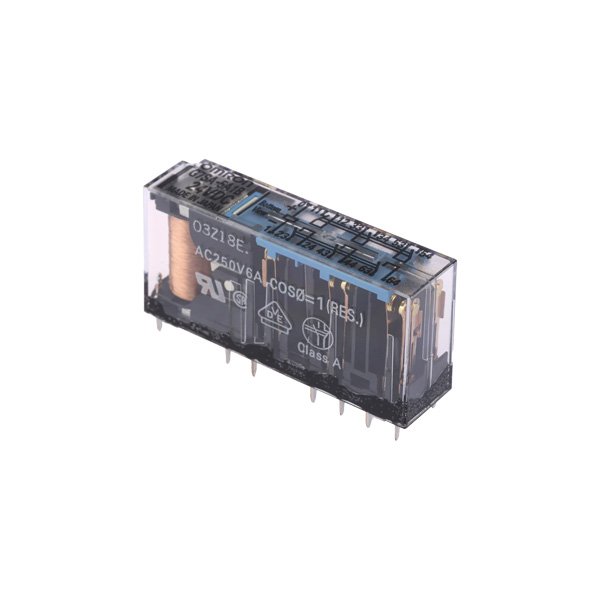

The Omron G7SA, G7S, and G7SB series are compact, slim safety relays featuring forcibly guided contacts that comply with EN 50205 Class A standards. Designed for safety circuits in industrial machinery such as presses, machine tools, and automated production lines, these relays ensure reliable operation in critical applications. The series includes various contact configurations (3PST+1NC, 5PST+1NC, 4PST+2NC) and are available in DC12V and DC24V coil voltage options. They feature reinforced insulation between inputs, outputs, and poles, and are compatible with PCB mounting or quick-connect sockets for easy installation.
Key Features
- Safety Relay with forcibly guided contacts (EN 50205)
- Contact Configuration: 3PST-NO+1NC, 5PST-NO+1NC, 4PST-NO+2NC
- Coil Voltage: DC 12V, DC 24V
- Mounting: PCB mount or Socket (P7SA series)
- Insulation: Reinforced insulation between poles
- Country of Origin: Japan (Omron)
Technical Specifications
Parameter | Specification |
|---|---|
Rated Load | 6 A at 250 V AC, 6 A at 30 V DC |
Rated Carry Current | 6 A |
Max. Switching Voltage | 250 V AC, 125 V DC |
Max. Switching Current | 6 A |
Max. Switching Capacity | 1,500 VA, 180 W |
Contact Resistance | 100 mΩ max. |
Operating Time | 20 ms max. |
Response Time | 10 ms max. |
Mechanical Life | 10,000,000 operations min. |
Electrical Life | 100,000 operations min. |
Dielectric Strength | 4,000 V AC (coil-contacts), 2,500 V AC (between poles) |
Insulation Resistance | 1,000 MΩ min. |
Operating Temperature | -40°C to +85°C (DC12V-48V) / -40°C to +60°C (DC110V) |
Weight | Approx. 22 g (4-pole), 25 g (6-pole) |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for safety circuit configuration
- Wiring and socket compatibility verification
- Installation and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial safety systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Safety circuits in press machinery
- Machine tool safety monitoring
- Automated production line safety gates
- Emergency stop circuits
- Door interlock systems
