Description

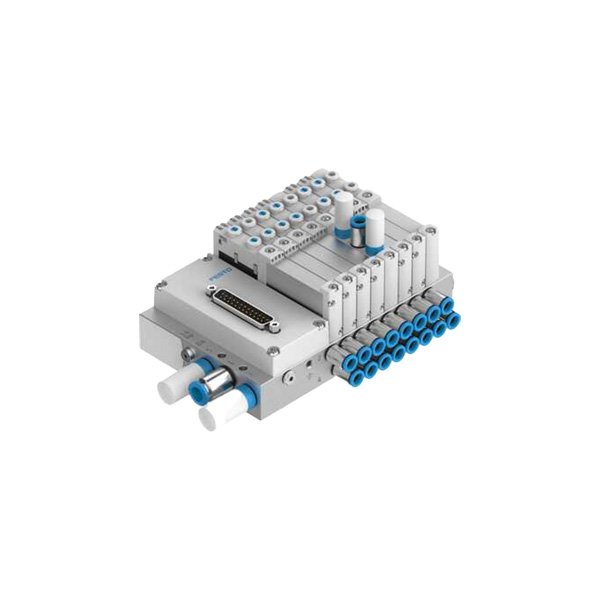

The Festo VTUG-10-MSDR-B1T-25V20-Q8L-UL-Q6S-7P+HMI is a high-performance universal valve manifold designed for advanced industrial automation. This system integrates the 573606 valve terminal with an HMI (Human-Machine Interface) for intuitive control and monitoring. The 73734 is a Proportional-pressure Regulator that provides precise pressure control for applications requiring variable force or speed. This combination offers a complete solution for complex pneumatic control systems, featuring a fixed grid design with up to 24 valve positions and 13 pressure zones. It is designed for high flow rates and is compatible with various fieldbus protocols, making it ideal for modern, connected factories.
Key Features
- Universal Valve Manifold (VTUG) with integrated HMI for direct control
- Proportional-pressure Regulator (73734) for precise, variable pressure control
- High Flow Capacity: Optimized for demanding pneumatic applications
- Multiple Interface Options: Supports multi-pin plug, fieldbus, and IO-Link connectivity
- Robust Construction: Fixed grid design with corrosion-resistant materials
- Country of Origin: Germany (Festo AG & Co. KG)
Technical Specifications
Parameter | Specification |
|---|---|
Catalog Number | VTUG-10-MSDR-B1T-25V20-Q8L-UL-Q6S-7P+HMI / 573606 / 73734 |
Product Type | Valve Manifold with HMI & Proportional Regulator |
Valve Size | 10 mm / 14 mm / 18 mm (Modular) |
Max. Nominal Flow Rate | Up to 1200 l/min (at 18 mm) |
Operating Pressure | -0.9 bar to 10 bar (Vacuum to High Pressure) |
Nominal Operating Voltage | 24 V DC |
Protection Rating | IP65 / IP67 (Suitable for harsh environments) |
Valve Functions | 3/2-way, 5/2-way, 5/3-way (Monostable/Bistable) |
Electrical Connection | Multi-pin plug (M12, M16) or Fieldbus (PROFIBUS, EtherCAT) |
Pneumatic Connection | Push-in connectors (QS series) or Threaded (G1/8, G1/4) |
Ambient Temperature | -5°C to +60°C |
Weight | Varies by configuration (Modular system) |
Standards | CE, UL, cULus, RoHS compliant |
Related Products in Listing:
Model | Type | Key Function |
|---|---|---|
573606 | Valve Terminal | Core manifold with electronic control |
73734 | Proportional Regulator | Precise pressure regulation (0-10 bar typical) |
HMI Module | Interface | Touchscreen for parameter setting and diagnostics |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for system configuration and fieldbus integration
- Assistance with HMI programming and proportional valve tuning
- Compatibility verification with your existing control system (e.g., Siemens, Rockwell)
- Commissioning support for complex pneumatic circuits
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Festo automation components
- Global supply network with competitive pricing
- Expertise in pneumatic and electromechanical systems
- Comprehensive technical documentation (Datasheets, CAD models)
- Responsive customer service and support
Applications
- Automated Assembly Lines: Precise control of clamping and positioning
- Packaging Machinery: Regulating pressure for sealing and cutting operations
- Robotics: End-of-arm tooling (EOAT) control with variable force
- Material Handling: Conveyor system actuation and sorting
- Process Automation: Controlling actuators in chemical or food processing
