Description

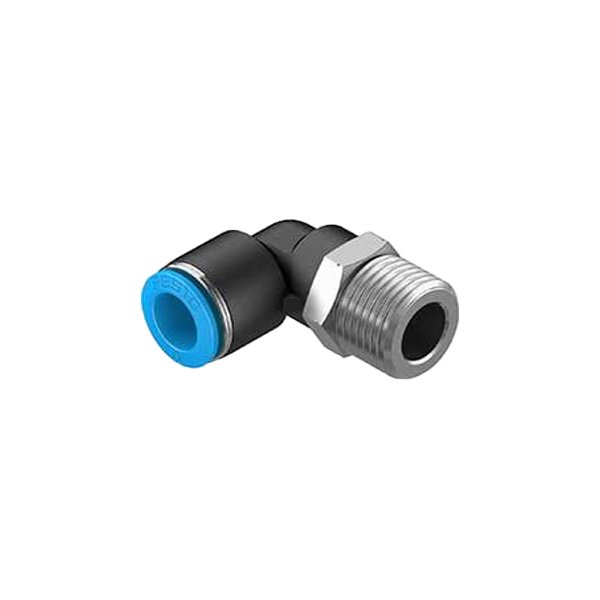

The Festo QSL-1/2-12 (Order Code: 153054) is a high-quality 90-degree elbow push-in fitting designed for pneumatic systems. This “L-fitting” features a male R1/2 (BSPT) tapered thread on one end and a push-in connector for 12 mm outer diameter (OD) tubing on the other. The fitting is 360° orientable, allowing for flexible alignment after assembly without disconnecting the tubing. Constructed with a PBT housing and nickel-plated brass screw-in stud, it offers excellent corrosion resistance and durability for industrial automation applications. The integrated stainless steel retaining claw ensures a secure, vibration-proof grip on the tube without damaging its surface.
Key Features
- Push-in L-fitting with 90-degree elbow design
- Connection 1: Male thread R1/2 (BSPT, tapered)
- Connection 2: Push-in for 12 mm OD tubing
- 360° Orientable: Can be rotated after tightening for perfect alignment
- Quick Connect: Simple push-pull principle for fast installation and maintenance
- Material: Housing PBT, Screw-in stud Nickel-plated brass
- Seal: NBR (Nitrile) for reliable sealing
- Country of Origin: Germany
Technical Specifications
Parameter | Specification |
|---|---|
Order Code | 153054 |
Product Code | QSL-1/2-12 |
Thread Size (Port 1) | R1/2 (BSPT, Male) |
Tubing OD (Port 2) | 12 mm |
Nominal Size | 10.3 mm |
Operating Pressure (Air) | -0.95 bar to 6 bar (Full temp.) / up to 14 bar (Temp. dependent) |
Operating Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), Water (as per declaration) |
Ambient Temperature | -10°C to +80°C |
Material Housing | PBT (Polybutylene Terephthalate) |
Material Screw-in Stud | Nickel-plated brass |
Material Release Ring | POM (Blue) |
Material Tubing Seal | NBR |
Material Claw | High-alloy stainless steel |
Wrench Size | 21 mm (External Hexagon) |
Weight | approx. 61 g |
Standards | RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for pneumatic system design
- Guidance on thread type (R vs. G) selection
- Leakage troubleshooting and installation torque advice
- Compatibility verification with existing manifolds and cylinders
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Festo components
- Global supply network with competitive pricing
- Expertise in pneumatic and automation systems
- Comprehensive technical documentation (CAD models available)
- Responsive customer service and support
Applications
- Connecting pneumatic cylinders and valves to 12 mm tubing
- Machine building and factory automation
- Packaging machinery
- Material handling systems
- Tight spaces requiring a 90-degree turn in the air line
