Description

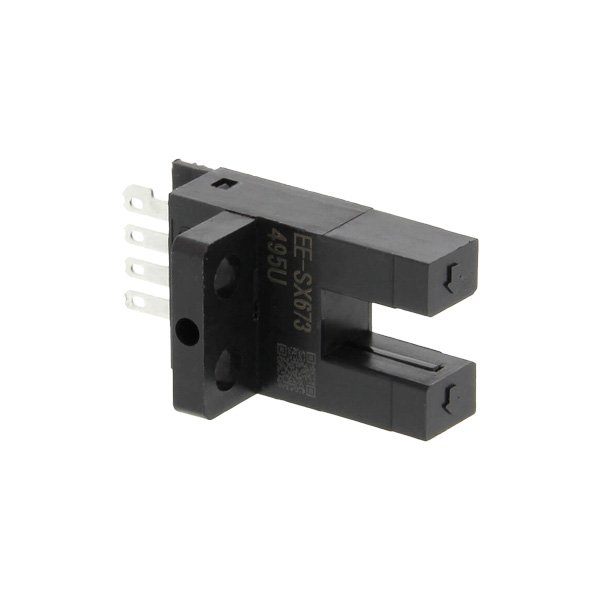

The EE-SX673, EE-SX672, EE-SX672A, EE-SX771A, EE-SX954-R, and E3JK-TR12-C are a series of high-performance photoelectric sensors from Omron, designed for precise object detection in industrial automation. This group includes slot-type (through-beam) and reflective sensors, offering solutions for applications requiring non-contact detection. The EE-SX67 series features compact slot-type designs with 5mm sensing distance, while the E3JK-TR12-C is a general-purpose through-beam sensor with a longer range. All models are built for reliability in harsh environments, featuring NPN/PNP outputs, wide operating voltage ranges, and robust housings.
Key Features
- Photoelectric Proximity Sensor with through-beam and reflective technology
- Sensing Range: 5 mm (EE-SX67 series) to 1-12m (E3JK series)
- Detection Principle: Through-beam, Reflective, Slot-type
- Output Configuration: NPN or PNP (model dependent)
- Connection: Connector or pre-wired models
- Protection Rating: IP50 to IP67
- Country of Origin: Japan (Omron)
Technical Specifications
Parameter | Specification |
|---|---|
Supply Voltage | 5-24 V DC (EE-SX67), 12-240 V AC/DC (E3JK) |
Current Consumption | 12-35 mA (EE-SX67) |
Output Type | NPN/PNP open collector, Relay (E3JK) |
Output Current | 100 mA max (EE-SX67) |
Sensing Distance | 5 mm (slot width) / 1-12m (beam) |
Light Source | Infrared LED (940 nm) |
Housing Material | Plastic (PBT, PC) |
Dimensions | Compact slot-type (e.g., 20x26x13mm) |
Weight | Approx. 2.3-3.1 g (EE-SX67) |
Protection Class | IP50 (EE-SX67), IP67 (E3JK) |
Operating Temperature | -25°C to +55°C (EE-SX67) |
Standards | CE, UL, RoHS compliant |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for wiring and configuration
- Mounting and alignment assistance
- Compatibility verification with control systems
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Omron components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Object detection in automated production lines
- Paper feed detection in printers and copiers
- Position sensing in robotics and machinery
- Conveyor belt object counting
- Security and access control systems
- Vending machine product dispensing
