Description

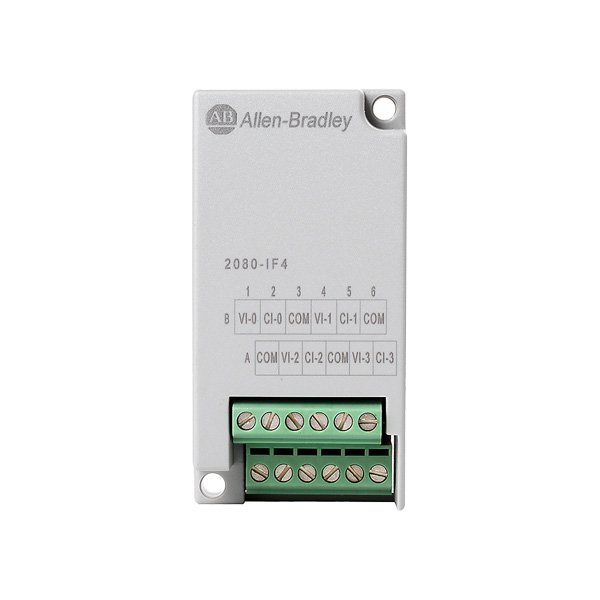

The Allen-Bradley 2080 series is the modular I/O expansion system for the Micro800 family of programmable controllers. The 2080-IF4 is a 4-point analog input plug-in module that provides high-resolution signal conditioning for process variables like temperature, pressure, and flow. The 2080-IF2 is a 2-point analog input module, and the 2080-OF2 is a 2-point analog output module. The 2080-LC50-48QVB and 2080-LC50-48QWB are Micro850 controllers that serve as the main processing units, with the primary difference being the power supply and output types. This ecosystem allows for flexible system configuration in industrial automation applications, from simple machine control to complex process monitoring.
Key Features
- Modular I/O System for Allen-Bradley Micro800 PLCs
- Analog Input Modules (2080-IF4/IF2): 4/2 channels, 12-bit resolution, supports voltage (0-10V) and current (0-20mA) inputs
- Analog Output Module (2080-OF2): 2 channels, 12-bit resolution, supports voltage (0-10V) and current (4-20mA) outputs
- Micro850 Controllers (2080-LC50-48QVB/QWB): 50KB memory, 24V DC power supply, 24 digital inputs, 16 transistor outputs (QVB: Source, QWB: Sink)
- Plug-in Design: Modules snap onto the controller or expansion base
- Software Configuration: Programmed with Connected Components Workbench (CCW)
- Country of Origin: USA / Mexico (Allen-Bradley)
Technical Specifications
Model | Type | Key Parameters | Details |
|---|---|---|---|
2080-IF4 | Analog Input | 4 channels, 12-bit | Voltage: 0-10V, ±10V; Current: 0-20mA; 250V AC isolation; Sampling: 2.5ms/ch |
2080-IF2 | Analog Input | 2 channels, 12-bit | Voltage: 0-10V, ±10V; Current: 0-20mA; 250V AC isolation |
2080-OF2 | Analog Output | 2 channels, 12-bit | Voltage: 0-10V; Current: 4-20mA; 16-bit D/A converter |
2080-LC50-48QVB | Micro850 Controller | 24 DI, 16 DO (Source) | 50KB memory, 24V DC power, Ethernet port, SD card slot |
2080-LC50-48QWB | Micro850 Controller | 24 DI, 16 DO (Sink) | 50KB memory, 24V DC power, Ethernet port, SD card slot |
Common Specifications:
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Immunity: 2g @ 10-500 Hz
- Shock Immunity: 30g for 11ms
- Isolation: 250V AC continuous
- Dimensions (Module): 45mm x 90mm x 87mm
- Weight: Approx. 150g
- Standards: CE, UL, cULus, RoHS
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for system configuration and wiring
- Assistance with Connected Components Workbench programming
- Compatibility verification with existing Micro800 systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Allen-Bradley / Rockwell Automation components
- Global supply network with competitive pricing
- Expertise in Micro800 and CompactLogix systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Process variable monitoring (temperature, pressure, level)
- Machine automation with analog sensor integration
- Building automation systems
- Water and wastewater treatment
- Packaging and material handling equipment
- OEM machine builders requiring flexible I/O configuration
