Description

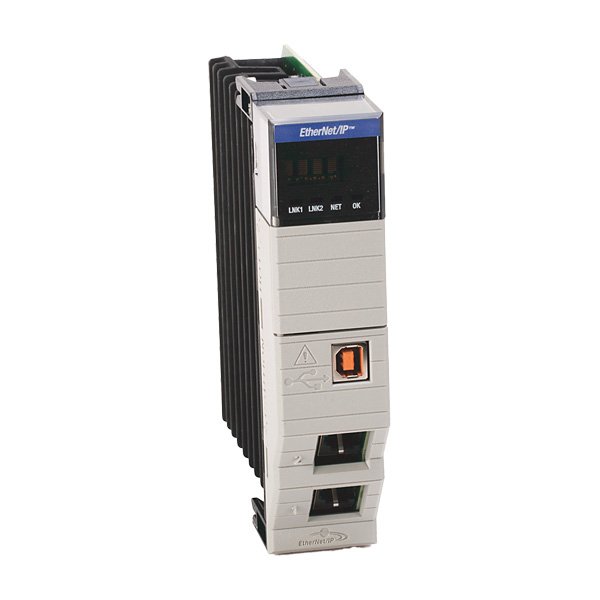

The Allen-Bradley 1756-EN2T is a high-performance EtherNet/IP communication module designed for the ControlLogix (CLX) family of programmable controllers. This module serves as a bridge between the ControlLogix backplane and an industrial Ethernet network, providing real-time I/O control and messaging capabilities. It supports 10/100 Mbps auto-negotiation, offers enhanced performance over legacy models like the 1756-ENBT, and is designed for demanding applications requiring high-speed data exchange. The 1756-EN2T features a single RJ45 port and is a standard choice for most ControlLogix systems. The listing also includes the 1756-EN2TR (dual-port with embedded switch for Device Level Ring networks), the 1756-ENBT (legacy 10/100M module), and the 1756-EWEB (web server module for remote monitoring), providing a comprehensive range of communication solutions.
Key Features
- EtherNet/IP Communication Module for ControlLogix systems
- High-Speed Data Transfer: 10/100 Mbps auto-negotiating Ethernet port
- Enhanced Performance: Supports up to 128 TCP/IP connections and 256 CIP connections
- Single-Slot Design: Fits in any slot of a 1756 chassis
- USB Port: For easy configuration and firmware updates
- Real-Time I/O and Messaging: Supports explicit and implicit messaging for control and data exchange
- Country of Origin: USA (Allen-Bradley / Rockwell Automation)
Technical Specifications
Parameter | Specification |
|---|---|
Catalog Number | 1756-EN2T, 1756-EN2TR, 1756-ENBT, 1756-EWEB |
Product Type | EtherNet/IP Communication Module |
Communication Speed | 10/100 Mbps (Auto-negotiating) |
Ports | 1 x RJ45 (EN2T/ENBT/EWEB), 2 x RJ45 (EN2TR) |
Max TCP Connections | 128 (EN2T) |
Max CIP Connections | 256 (EN2T) |
Power Supply | 5.1V DC, 1.0A (EN2T) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity | 5% to 95% (non-condensing) |
Protection Rating | IP20 (chassis) |
Isolation | 30V continuous |
Dimensions | 118mm x 100mm x 30mm (H x W x D) |
Weight | Approx. 200 g |
Standards | CE, UL, cULus, RoHS compliant |
Related Products in Listing:
Model | Type | Key Function |
|---|---|---|
1756-EN2T | Standard Module | Single-port EtherNet/IP, high capacity |
1756-EN2TR | Redundant/Advanced | Dual-port with embedded switch for DLR networks |
1756-ENBT | Legacy Module | Original 10/100M module, widely used in older systems |
1756-EWEB | Web Server | Embedded web server for remote HMI and monitoring |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for ControlLogix system configuration
- Assistance with network setup and IP addressing
- Compatibility verification with your specific ControlLogix controller
- Commissioning support for EtherNet/IP networks
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Allen-Bradley / Rockwell Automation components
- Global supply network with competitive pricing
- Expertise in ControlLogix and CompactLogix control systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial Automation: Connecting ControlLogix controllers to HMI, SCADA, and other devices
- Real-Time Control: High-speed I/O control over Ethernet/IP
- Data Logging: Collecting and transferring data from the controller to databases
- Remote Access: Enabling remote programming and monitoring of PLC systems
- System Integration: Bridging between different industrial networks
