Description

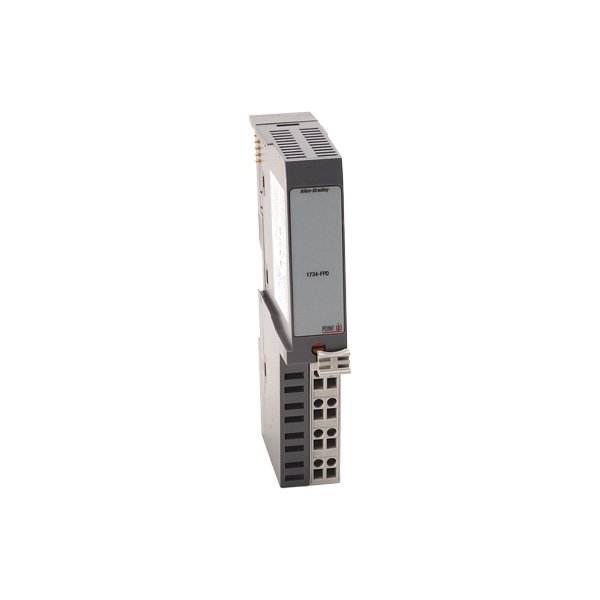

The Allen-Bradley 1734-FPDK is a specialized Field Potential Distributor Module designed for the POINT I/O modular distributed I/O system. The “K” suffix indicates that the module is equipped with a conformal coating (protective coating) on its printed circuit board, making it suitable for harsh industrial environments where moisture, condensation, or corrosive contaminants are present. This module provides convenient connection points for distributing power (up to 10A) to field devices like sensors and actuators, while isolating the I/O system from potential noise and voltage spikes. It is a passive, non-isolated module that simplifies wiring in compact control panels.
Key Features
- Field Potential Distributor for POINT I/O system
- Conformal Coated (K-Series) for protection against moisture and contaminants
- Current Rating: 10A maximum (continuous)
- Connection: Removable screw terminal blocks
- Mounting: POINT I/O rail mount (single slot width)
- Compatibility: All 1734 POINT I/O modules
- Country of Origin: USA (Rockwell Automation)
Technical Specifications
Parameter | Specification |
|---|---|
Catalog Number | 1734-FPDK |
Module Type | Field Potential Distributor (Passive) |
Rated Voltage | 120/240V AC or 12/24V DC (for field device power) |
Current Rating | 10 A max (per connection group) |
Power Consumption | 0 W (Passive device) |
Terminal Type | Removable screw-clamp terminal block |
Wire Range | 12-24 AWG (0.5-2.5 mm²) |
Operating Temperature | 0°C to +60°C |
Storage Temperature | -40°C to +85°C |
Dimensions (WxHxD) | 25.4 mm × 76.2 mm × 87 mm |
Weight | Approx. 0.1 kg |
Standards | cULus, ATEX, IECEx, CE |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for POINT I/O system configuration
- Wiring assistance for power distribution
- Compatibility verification with existing 1734 racks
- Diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Allen-Bradley / Rockwell Automation components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Distributed I/O systems in manufacturing
- Machine control panels
- Material handling systems
- Packaging machinery
- Harsh environment applications (with conformal coating protection)
