Description

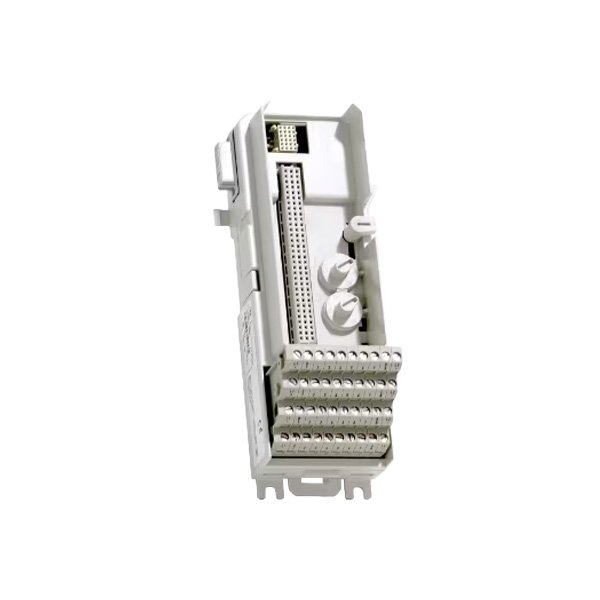

The ABB TU818 3BSE069209R1 is a 32-channel, 50V Compact Module Termination Unit (MTU) designed for the ABB S800 I/O system. This passive unit serves as the critical interface between field wiring and I/O modules, providing reliable signal transmission and power distribution. It features a compact design with 40-pole screw terminals and supports DIN rail mounting in both horizontal and vertical orientations. The MTU incorporates part of the ModuleBus, distributing signals to the I/O module and the next MTU in the chain. It utilizes mechanical keying with 36 possible configurations to prevent incorrect module insertion and ensure system integrity.
Key Features
- Compact Module Termination Unit (MTU) for ABB S800 I/O
- Channels: 32 channels (1×32 or 2×16 configuration)
- Voltage Rating: 50V
- Connection Type: Terminal block (screw terminals)
- Mounting: DIN rail (horizontal or vertical)
- ModuleBus Integration: Distributes ModuleBus signals
- Mechanical Keying: 36 configurations to prevent wrong insertion
- Country of Origin: Sweden / Malta / India
Technical Specifications
Parameter | Specification |
|---|---|
Article Number (MLFB) | 3BSE069209R1 |
Model | TU818 / TU818V1 |
Supply Voltage | 50 V |
Channels | 32 |
Terminal Type | Screw terminal (40-pole) |
Maximum Current per I/O Channel | 2.5 A |
Maximum Current Process Connection (L1+, L2+) | 8 A |
Wire Sizes (Solid) | 0.5 – 2.5 mm² |
Wire Sizes (Stranded) | 0.5 – 1.5 mm² |
Dielectric Test Voltage | 500 V AC |
Mounting Temperature (Horizontal) | Up to 55 °C (131 °F) |
Mounting Temperature (Vertical) | Up to 40 °C (104 °F) |
Operating Temperature | 0 to +55 °C (Storage -40 to +70 °C) |
Protection Rating | IP20 |
Dimensions (W x H x D) | 58.5 mm × 170 mm × 64 mm |
Weight | approx. 0.26 kg |
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and installation
- Wiring and mechanical keying assistance
- Compatibility verification with S800 I/O modules
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine ABB components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Process Automation: Connection of sensors and actuators in DCS systems
- Power Generation: Turbine control and monitoring systems
- Oil & Gas: Refinery and pipeline SCADA networks
- Chemical Processing: Hazardous area instrumentation
- Manufacturing: Machine control and monitoring in production lines
