Description

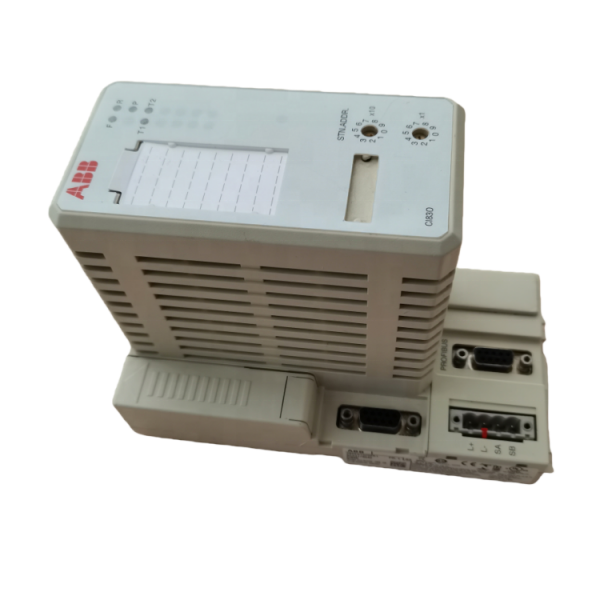

The 3BSE013252R1 is a critical 2-position terminal block plug specifically designed for the ABB CI830 (Circuit Interface 830) communication interface module, which serves as the PROFIBUS DP-V1 slave for the S800 I/O system. This plug provides the essential electrical connection between the field wiring and the intelligent CI830 module, enabling communication with a wide range of S800 series I/O modules (e.g., AI810, DI810, FI830F) in the distributed AC 800M controller architecture. Its precise design ensures reliable signal transmission for high-availability process automation systems.
Key Features
- Type: 2-position Terminal Block Plug (Spring Clamp)
- Compatibility: Designed exclusively for the ABB CI830 (3BSE008514R1) PROFIBUS DP-V1 Communication Interface module.
- Function: Provides the wiring interface for the CI830’s internal power and communication signals to the S800 I/O base units.
- System: Part of the S800 I/O and AC 800M controller system.
- Quality: ABB OEM part, ensuring mechanical fit and electrical reliability.
Technical Specifications
- Article Number: 3BSE013252R1
- Description: Terminal Block Plug, 2P, for CI830
- Connection Technology: Spring clamp termination
- Wire Range: Typically suitable for 0.2 – 2.5 mm² (AWG 24-12) solid or stranded wire
- Rated Voltage: 300 V
- Rated Current: Up to 10 A (depending on wire gauge and application)
- Material: Thermoplastic (PA6.6), UL94 V-0 rated
- Color: Black (standard)
- Mounting: Snaps onto the CI830 communication interface module.
Warranty & After-Sales
- Factory new units: 12 months warranty (ABB original, bulk pack).
- Refurbished units: 3-6 months warranty (visually inspected and tested for connection integrity).
- Critical Note: This is a spare part. Technical support focuses on correct installation and compatibility verification.
- Compatibility verification with your specific CI830 module and S800 I/O base unit (e.g., TB810, TB820).
- We advise checking the integrity of the CI830 module’s socket when replacing this plug.
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available for urgent process plant maintenance.
Why Choose Our Store
- Genuine ABB IndustrialIT Components: Specialize in hard-to-find S800 I/O system spare parts.
- System Expertise: Understand the hierarchy (Controller -> CI830 -> S800 I/O Base -> Module) and can help identify the correct ancillary parts.
- Documentation: Can provide the relevant excerpt from the CI830 hardware manual upon request.
Applications
- Spare Part Replacement: Direct replacement for a lost or damaged terminal block plug on an existing CI830 module in the field.
- System Expansion: Required when adding a new CI830 communication interface to an existing S800 I/O rack.
- Maintenance Kits: Included in preventive maintenance kits for AC 800M controller systems.
