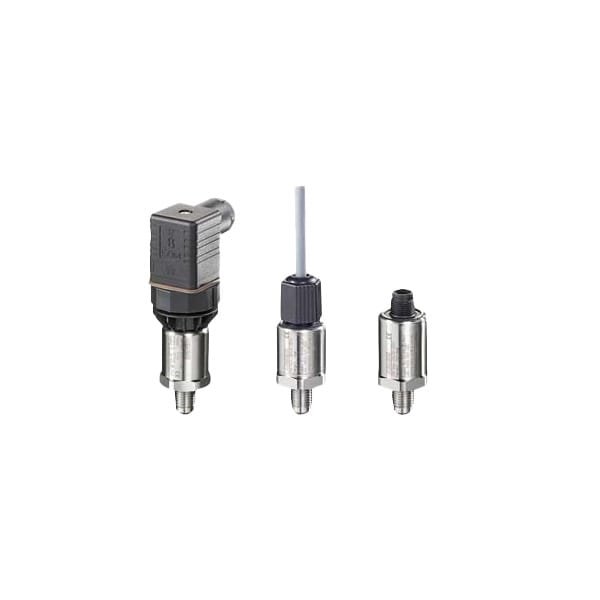

7MF1567-4CE00-1GA1 SITRANS P220 Pressure Transmitter for High Pressure and Refrigerant Applications

Description

Product Overview

The SITRANS P220 Pressure Transmitter (7MF1567-4CE00-1GA1) is engineered for use in high pressure and refrigerant applications, providing accurate and reliable pressure measurement even in harsh industrial environments. Its fully welded design ensures durability and leak-free performance, while the stainless steel wetted parts provide superior resistance to corrosion.

With a measuring range of 0 to 500 psi and an overload pressure rating of 1400 psi, the SITRANS P220 is capable of handling high-pressure conditions. The 0.25% characteristic curve deviation and the ability to measure in ranges as small as 0.5% of the full scale make this transmitter ideal for precise pressure measurement in demanding applications.

The transmitter features a 2-wire 4 to 20 mA output, powered by a DC supply of 7 to 33 V, and includes a DIN EN 175301-803-A plug for electrical connection. The process connection is a 1/2″-14 NPT male fitting, making it versatile for integration with existing systems.

Key Features

• Official Product Number: 7MF1567-4CE00-1GA1

• Fully welded design for durability and leak-free operation

• Measuring range: 0 to 500 psi

• Overload pressure: 1400 psi

• Characteristic curve deviation: typ. 0.25%

• Free measuring range smaller than 0.5%

• Output signal: 4 to 20 mA, 2-wire connection

• Power supply: DC 7 to 33 V (without explosion protection)

• Electrical connection: Plug to DIN EN 175301-803-A, threaded for M16 packed gland

• Process connection: 1/2″-14 NPT male

• Material of wetted parts: Stainless steel

• Material of non-wetted parts: Stainless steel

Warranty & After-Sales

• 12-month warranty from the delivery date

• Full after-sales support, including troubleshooting, installation, and technical assistance

• Fast replacement services available for faulty units

Delivery Time

• Standard delivery: 3–5 working days after order confirmation

• Expedited shipping options available upon request

Why Choose KaiRock

• Genuine Siemens products with full certification

• Reliable sourcing and competitive pricing for industrial components

• Global delivery network for fast international shipping

• Expert technical support before, during, and after purchase

Applications

• High pressure and refrigerant applications requiring accurate pressure measurement

• Industrial systems needing reliable pressure transmitters

• Control and monitoring of hydraulic, pneumatic, and process control systems

• Applications requiring durable and corrosion-resistant components in demanding environments
