6SL3244-0BB13-1FA0

Siemens SINAMICS G120 CU240E-2 PN-F Control Unit  | Shop On Ebay
Factory New Parts : Warranty 12 Months​
Second-Hand Parts : Warranty 3-6 Months​
Tested & Certified | Ships Worldwide​
Technical / Safety Configuration Support​
Warranty Extension and Urgent Delivery supported. Get your quote or lead time now !
Category: Tag:

Description

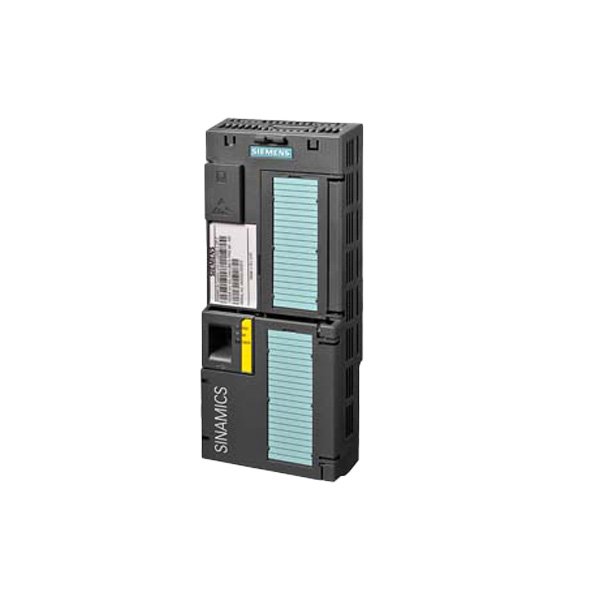

The Siemens SINAMICS G120 CU240E-2 PN-F (6SL3244-0BB13-1FA0) is an advanced F-type control unit with comprehensive Safety Integrated functions for G120 variable frequency drives. Featuring PROFINET interface and multiple safety functions including STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed), SSM (Safe Speed Monitor), and SDI (Safe Direction), this unit provides SIL 3/PL e safety capability. With extensive I/O including 6 digital inputs, 3 digital outputs, 2 analog inputs, 2 analog outputs, and up to 3 fault-safe digital inputs for PTC/KTY temperature sensors, plus USB and SD/MMC interfaces for data handling. IP20 protection and 0 to +50°C operating range. Note:​ Requires separate Power Module for complete drive system.

Key Features

  • G120 F-type control unit with PROFINET interface
  • Safety Integrated: STO, SS1, SLS, SSM, SDI functions
  • SIL 3/PL e safety capability
  • I/O: 6DI, 3DQ, 2AI, 2AQ
  • Up to 3 F-DI for PTC/KTY temperature sensors
  • USB and SD/MMC interfaces for configuration
  • IP20 protection rating
  • Operating temperature: 0 to +50°C
  • Power Module not included​

Warranty & After-Sales

  • Factory new units: 12 months warranty
  • Refurbished units: 3-6 months warranty
  • Technical support for safety configuration and validation

Delivery Time

  • Standard delivery: 3-5 working days
  • Express shipping available upon request

Why Choose Our Store

  • Genuine Siemens drive components
  • Global supply network with competitive pricing
  • Expertise in functional safety drive systems

Applications

  • Safety-critical drive applications up to SIL 3/PL e
  • Machine tools with safety requirements
  • Automated production lines with safety functions
  • Material handling systems with safe motion control
  • Industrial drives requiring comprehensive safety
