Description

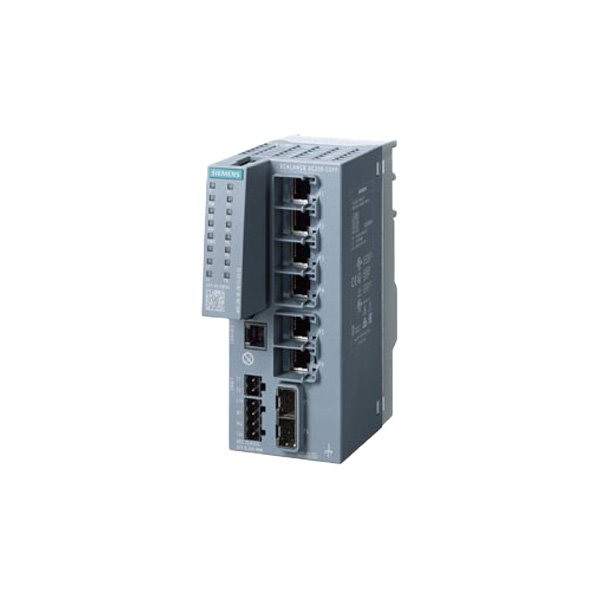

The Siemens SCALANCE XC206-2SFP (6GK5206-2BS00-2AC2) is a compact industrial Ethernet switch designed for reliable network connectivity in harsh industrial environments. This managed switch features 6 Fast Ethernet ports and 2 Gigabit SFP slots, providing flexible network configuration options. With IP30 protection rating and wide operating temperature range (-40°C to +70°C), it ensures stable operation in demanding conditions. The switch supports PROFINET, LLDP, VLAN, and SNMP protocols, making it ideal for industrial automation networks. Redundant power supply inputs (24V DC) and integrated relay contacts enhance system reliability, while the compact metal housing provides robust protection against mechanical stress and electromagnetic interference.
Key Features
- Managed Industrial Ethernet Switch with 6 FE ports + 2 SFP slots
- 6 × 10/100 Mbps Fast Ethernet ports (RJ45)
- 2 × Gigabit SFP slots (100/1000 Mbps)
- IP30 protection rating
- Wide temperature range: -40°C to +70°C
- Redundant 24V DC power supply
- PROFINET device support
- Management features: Web, CLI, SNMP
- Layer 2 functions: VLAN, QoS, IGMP Snooping
- Compact metal housing (DIN-rail mountable)
- Integrated diagnostics and monitoring
- Country of origin: Germany
Technical Specifications
- Port Configuration:
- 6 × Fast Ethernet (10/100Base-TX, RJ45)
- 2 × Gigabit SFP slots (100/1000Base-X)
- Data Rate:
- Fast Ethernet: 10/100 Mbps
- Gigabit Ethernet: 100/1000 Mbps
- Switch Features:
- Switching capacity: 2.8 Gbps
- Packet buffer memory: 256 KB
- MAC addresses: 8K
- Power Supply:
- Input voltage: 24V DC (19.2-28.8V)
- Redundant inputs
- Power consumption: 6W max
- Protection: IP30
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Dimensions: 35mm × 135mm × 105mm (W × H × D)
- Weight: approx. 0.6 kg
- Mounting: DIN-rail (35mm)
- Certifications: CE, UL, Class I Div 2, ATEX, IECEx
- Network Protocols:
- PROFINET
- LLDP, SNMP, HTTP, Telnet
- VLAN (IEEE 802.1Q)
- QoS (IEEE 802.1p)
- IGMP Snooping v1/v2/v3
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for network configuration
- Network design and planning assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SCALANCE networking components
- Global supply network with competitive pricing
- Expertise in industrial network infrastructure
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial automation networks
- PROFINET system integration
- Factory network infrastructure
- Process control networks
- Machine control networks
- Distributed I/O systems
- Manufacturing execution systems
- Harsh environment networking
- Redundant network topologies
- Industrial IoT networks
