Description

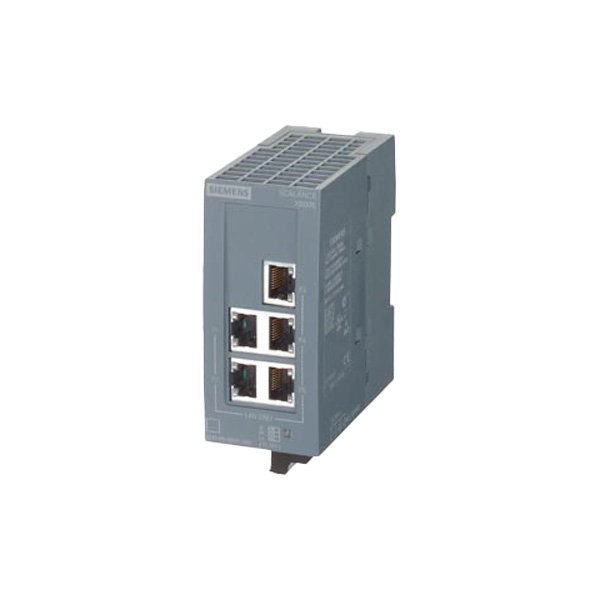

The Siemens SCALANCE XB005 Unmanaged Industrial Ethernet Switch (6GK5005-0BA00-1AB2) is a compact and robust industrial Ethernet switch designed for reliable network connectivity in harsh industrial environments. This unmanaged switch features 5 RJ45 ports supporting 10/100 Mbps auto-negotiation and auto-sensing, providing plug-and-play network expansion without configuration requirements. With its rugged metal housing, wide operating temperature range, and DIN rail mounting capability, it ensures stable performance in demanding industrial applications. The switch supports Auto-MDI/MDIX functionality, eliminating the need for crossover cables, and features integrated diagnostic LEDs for quick network status monitoring.
Key Features
- Unmanaged industrial Ethernet switch with 5 RJ45 ports
- 10/100 Mbps auto-negotiation and auto-sensing
- Plug-and-play operation, no configuration required
- Rugged metal housing for industrial environments
- DIN rail mounting for easy installation
- Auto-MDI/MDIX support (no crossover cables needed)
- Integrated diagnostic LEDs for port and power status
- Wide operating temperature range
- Country of origin: Germany
Technical Specifications
- Number of Ports: 5 RJ45 ports (10/100 Mbps)
- Switch Type: Unmanaged, plug-and-play
- Data Rate: 10/100 Mbps, auto-negotiation
- Network Standards: IEEE 802.3, 802.3u
- Auto-MDI/MDIX: Yes, all ports
- Power Supply: 24V DC (20.4-28.8V)
- Power Consumption: 2.5W typical
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 35mm × 125mm × 99mm (W×H×D)
- Weight: approx. 0.5 kg
- Protection Degree: IP20
- Mounting: DIN rail (35mm)
- Diagnostic LEDs: Power, Link/Activity per port
- Standards: CE, UL, CSA, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for network configuration and integration
- Installation assistance and compatibility verification
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SCALANCE components
- Global supply network with competitive pricing
- Expertise in industrial network systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial Ethernet network expansion
- Machine control system networking
- Production line network connectivity
- Building automation networks
- Small to medium industrial network installations
- Remote I/O network connections
- Process control system networking
- Test and measurement equipment networks
