Description

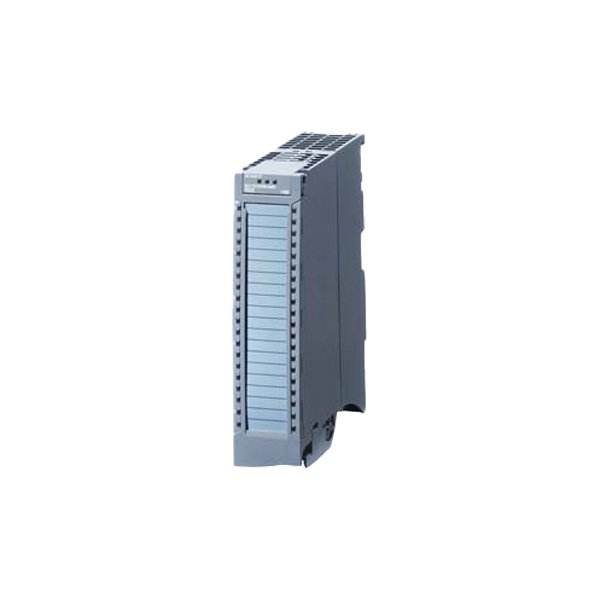

The Siemens SIMATIC S7-1500 Analog Output Module AQ 4xU/I ST (6ES7532-5HD00-0AB0) is a versatile analog output module designed for industrial automation applications requiring precise control of process variables. This standard module provides 4 analog output channels with configurable voltage or current output, enabling flexible control of actuators, valves, and other field devices. With 16-bit resolution and 0.3% accuracy, it delivers high-precision signal output for demanding control applications. Featuring comprehensive diagnostic capabilities and process alarms, this module ensures reliable performance in industrial control systems, making it ideal for process automation, machine control, and building management applications.
Key Features
- Analog Output Module for SIMATIC S7-1500 system
- 4 analog output channels
- Configurable voltage or current output
- 16-bit resolution with 0.3% accuracy
- Diagnostic capability with process alarms
- Hardware interrupt support
- Screw terminals or push-in front connector
- Compact 35mm width design
- DIN rail mounting
- Country of origin: Germany
Technical Specifications
- Number of Outputs: 4 analog outputs (AQ 4x)
- Output Types: Voltage (0-10V) or Current (0-20mA/4-20mA)
- Resolution: 16-bit
- Accuracy: ±0.3% of full scale value
- Output Update Time: 0.5 ms typical per channel
- Load Impedance:
- Voltage output: ≥1 kΩ
- Current output: ≤500 Ω
- Power Supply: 24V DC via backplane
- Power Consumption: 2.0W typical
- Operating Temperature: 0°C to +60°C (horizontal installation)
- Dimensions: 35mm × 147mm × 129mm (W×H×D)
- Weight: approx. 0.265 kg
- Protection Degree: IP20
- Standards: IEC 61131, UL 508, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC S7-1500 components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Control of proportional valves and actuators
- Speed control of variable frequency drives
- Position control in servo systems
- Temperature controller setpoint adjustment
- Flow and pressure regulation
- Level control systems
- Process variable manipulation
- Industrial automation control systems
