Description

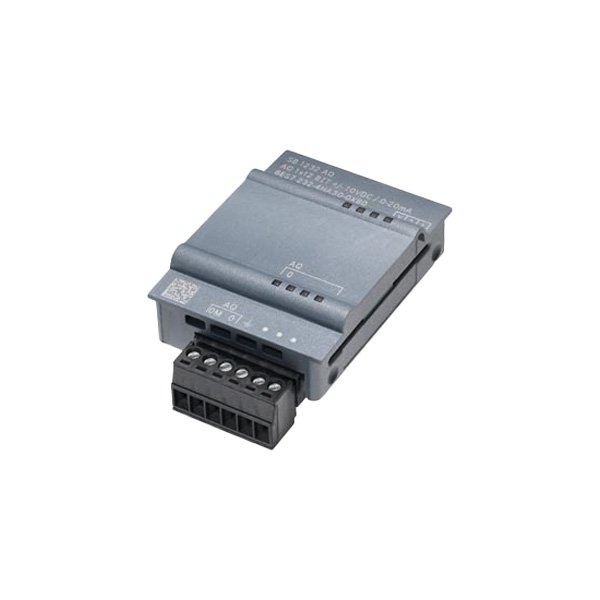

The Siemens SIMATIC S7-1200 Analog Output Signal Board SB 1232 (6ES7232-4HA30-0XB0) is a compact analog output expansion module designed specifically for the S7-1200 PLC series. This signal board provides 1 analog output channel that supports configurable voltage (±10V) or current (0-20mA) output, enabling precise control of actuators, valves, and other analog field devices. Featuring 12-bit resolution and a fast conversion time, it can be directly inserted onto the CPU front panel without occupying additional cabinet space. Its compact 38mm x 62mm x 21mm dimensions and DIN rail mounting make it an ideal solution for space-constrained automation applications requiring flexible analog output expansion.
Key Features
- Analog Output Signal Board with 1 output channel
- 12-bit resolution for precise signal output
- Supports ±10V voltage or 0-20mA current output
- Configurable output ranges via software
- Direct insertion onto S7-1200 CPU front panel
- No additional cabinet space required
- Compact design: 38mm x 62mm x 21mm
- DIN rail mounting
- Country of origin: China
Technical Specifications
- Output Channels: 1 analog output
- Output Types: ±10V voltage or 0-20mA current
- Resolution: 12 bits
- Voltage Output Range: ±10V DC
- Current Output Range: 0-20mA
- Load Impedance:
- Voltage output: ≥1 kΩ
- Current output: ≤500 Ω
- Conversion Time: Typically 0.5 ms
- Power Supply: 24V DC (via CPU backplane)
- Power Consumption: 0.5W typical
- Operating Temperature: 0°C to +55°C (horizontal)
- Dimensions: 38mm × 62mm × 21mm (W×H×D)
- Weight: approx. 0.035 kg
- Protection Degree: IP20
- Standards: CE, UL, CSA, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC S7-1200 components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Proportional valve and actuator control
- Variable frequency drive speed reference
- Temperature controller setpoint adjustment
- Analog display and indicator control
- Small process control systems
- Test and calibration equipment
- Laboratory instrumentation
- Building automation control
