6ES7155-5AA01-0AB0

Description

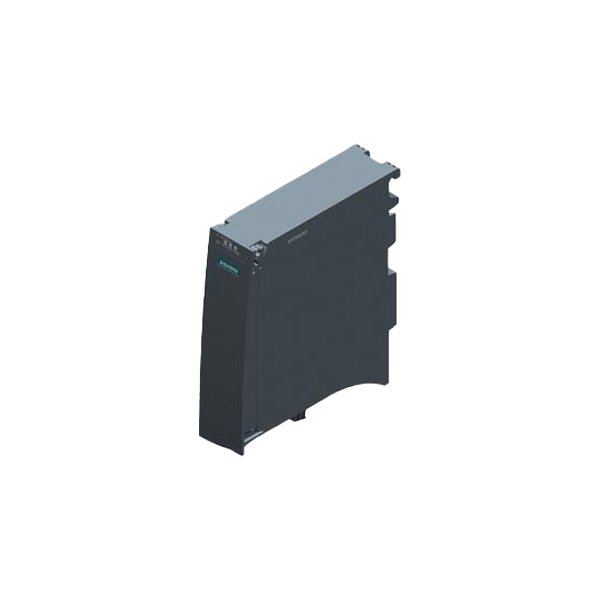

​The Siemens SIMATIC ET 200MP Interface Module IM 155-5 PN ST (6ES7155-5AA01-0AB0) is a high-performance PROFINET IO interface module designed for ET 200MP electronic modules. This module enables high-speed data exchange with superior I/O controllers via the PROFINET industrial Ethernet protocol, serving as the core component for building distributed I/O systems. The integrated 2-port switch supports line and ring network topologies, enabling flexible network configuration without external network components. Support for isochronous real-time communication (IRT) with a minimum cycle time of 250μs ensures high-speed response performance for demanding industrial applications.

Key Features​

• PROFINET IO Interface Module​ for ET 200MP distributed I/O systems
• Integrated 2-port switch with MRP media redundancy protocol support
• Isochronous real-time communication (IRT) with minimum 250μs cycle time
• Shared device function supports up to 2 IO controllers
• Supports up to 12 I/O modules (without PS) or 30 I/O modules (with additional PS)
• Online firmware update capability
• I&M0 to I&M3 identification and maintenance data support
• Fast Start Up (FSU) function with 500ms startup time
• Compact design with DIN rail mounting
• Country of origin: Germany

Technical Specifications​

• Interface Type: PROFINET IO
• Communication Protocol: PROFINET RT/IRT
• Data Transmission Rate: 100 Mbit/s
• Ports: 2 x RJ45 ports (integrated switch)
• Supported Modules: Max 12 I/O modules (without PS), Max 30 I/O modules (with PS)
• Address Space: Max 256 bytes per module, 512 bytes per station
• Power Supply: 24V DC (20.4-28.8V)
• Power Consumption: 4.5W typical
• Backplane Bus Current: 80mA
• Operating Temperature: 0°C to +60°C (horizontal), 0°C to +40°C (vertical)
• Storage Temperature: -40°C to +70°C
• Dimensions: 35mm x 147mm x 129mm (W x H x D)
• Weight: approx. 310g
• Protection Degree: IP20
• Certifications: CE, UL, CSA, FM

Warranty & After-Sales​

• Factory new units: 12 months warranty
• Refurbished units: 3-6 months warranty
• Technical support for system integration
• Configuration assistance
• Compatibility verification with existing systems
• Commissioning assistance available

Delivery Time​

• Standard delivery: 3-5 working days
• Express shipping available upon request

Why Choose Our Store​

• Genuine Siemens SIMATIC components
• Global supply network with competitive pricing
• Expertise in industrial automation systems
• Comprehensive technical documentation
• Support for legacy system maintenance

Applications​

• Industrial automation control systems
• Distributed I/O systems
• Process automation systems
• Machine control applications
• Building automation systems
• Material handling equipment
• Packaging machinery
• Manufacturing execution systems
• High-speed production line control
• Safety instrumented systems

• High-speed process control applications
