Description

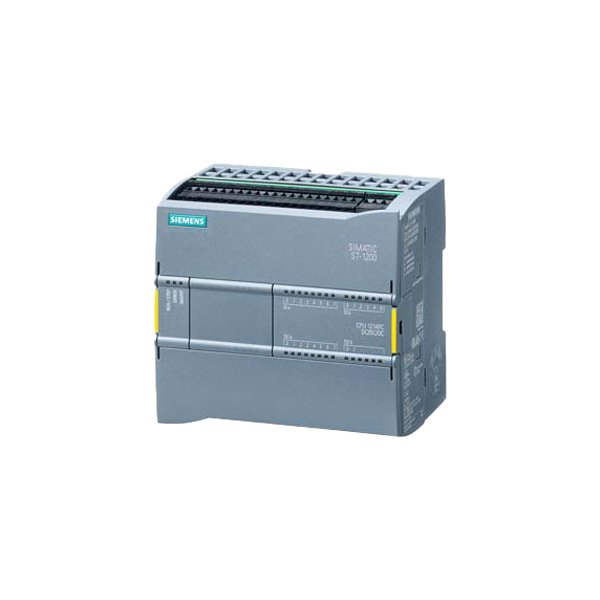

The Siemens SIMATIC S7-1200F CPU 1214 FC (6ES7214-1AF40-0XB0) is a compact fault-tolerant safety controller designed for industrial automation applications requiring standard and safety functions. This CPU features 100 KB work memory and integrated PROFINET interface, supporting both standard and safety communication via PROFIsafe. With 14 digital inputs, 10 digital outputs, and 2 analog inputs, it provides a versatile solution for small to medium-sized safety applications. The compact 90mm width design and modular expansion capability make it ideal for space-constrained control cabinets and distributed control systems with integrated safety requirements.
Key Features
- Fault-tolerant safety CPU with integrated standard and safety functions
- 100 KB work memory for program and data
- Integrated PROFINET interface with PROFIsafe support
- 14 digital inputs, 10 digital outputs, 2 analog inputs (onboard)
- Safety up to SIL 3 (IEC 61508) and PL e (ISO 13849-1)
- Integrated Web server for diagnostics
- Compact 90mm width design
- Modular expansion capability
- DIN rail mounting
- Country of origin: China
Technical Specifications
- Work Memory: 100 KB
- Digital Inputs: 14 channels, 24V DC
- Digital Outputs: 10 channels, 24V DC, 0.5A
- Analog Inputs: 2 channels, 0-10V DC
- PROFINET Interface: RJ45, 10/100 Mbit/s, PROFIsafe
- Safety Level: SIL 3 (IEC 61508), PL e (ISO 13849-1)
- Power Supply: 24V DC (20.4-28.8V)
- Power Consumption: 1.5W typical
- Operating Temperature: 0°C to +60°C
- Dimensions: 90mm × 100mm × 75mm (W×H×D)
- Weight: approx. 0.45 kg
- Protection Degree: IP20
- Standards: IEC 61131, UL 508, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Programming and commissioning assistance
- Compatibility verification with existing systems
- Diagnostics and safety validation support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC S7-1200F components
- Global supply network with competitive pricing
- Expertise in industrial automation safety systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine safety applications (emergency stop, safety doors)
- Process control with safety requirements
- Packaging machinery with integrated safety
- Small to medium safety control systems
- Building automation safety functions
- Material handling equipment safety
- Production line safety monitoring
