Description

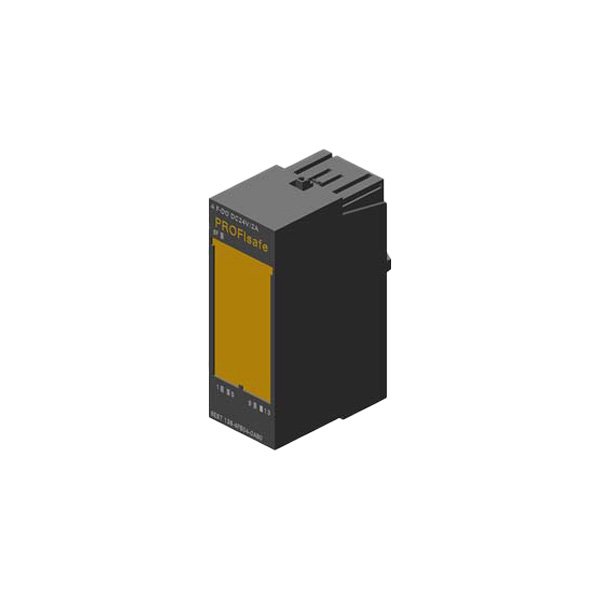

The Siemens SIMATIC ET 200S 4 F-DO PROFIsafe Safety Output Module (6ES7138-4FB04-0AB0) is a fault-tolerant digital output module designed for safety-critical applications in industrial automation. This module provides 4 digital safety outputs that support P-switching (source output) for 24V DC actuators, with a safety rating up to SIL 3 according to IEC 61508 and Category 4/PL e according to ISO 13849-1. Featuring comprehensive diagnostic functions including wire break detection, short-circuit detection, and cross-circuit detection, it ensures reliable operation in safety-related control circuits. The module is part of the ET 200S distributed I/O system and supports PROFIsafe communication protocol for integration into safety automation systems.
Key Features
- Safety Digital Output Module with 4 channels for ET 200S system
- 4 digital safety outputs, 24V DC, 2A per channel
- P-switching (source output) for actuator control
- Safety up to SIL 3 (IEC 61508) and Category 4/PL e (ISO 13849-1)
- Comprehensive diagnostics: wire break, short-circuit, cross-circuit detection
- PROFIsafe communication protocol support
- LED status indicators for each channel
- Terminal module connection via PM-E F power module
- Compact 15mm width design
- Country of origin: Germany
Technical Specifications
- Number of Outputs: 4 digital safety outputs
- Output Voltage: 24V DC (20.4-28.8V)
- Output Current: 2A per channel, 4A total
- Output Type: P-switching (source output)
- Safety Rating: SIL 3 (IEC 61508), Category 4/PL e (ISO 13849-1)
- Response Time: Typically 10 ms
- Diagnostic Functions: Wire break, short-circuit, cross-circuit detection
- Power Supply: Via PM-E F power module (24V DC)
- Power Consumption: 1.4W typical
- Operating Temperature: 0°C to +60°C
- Dimensions: 15mm × 81mm × 52mm (W×H×D)
- Weight: approx. 0.08 kg
- Protection Degree: IP20
- Connection: Terminal module via PM-E F
- Standards: IEC 61508, ISO 13849-1, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for safety configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing safety systems
- Commissioning and safety validation support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC ET 200S safety components
- Global supply network with competitive pricing
- Expertise in industrial safety automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Safety relay replacement in machine control
- Emergency stop circuit implementation
- Safety door monitoring and control
- Two-hand control systems
- Muting functions for light curtains
- Safe speed monitoring applications
- Process safety shutdown systems
- Robot cell safety applications
