Description

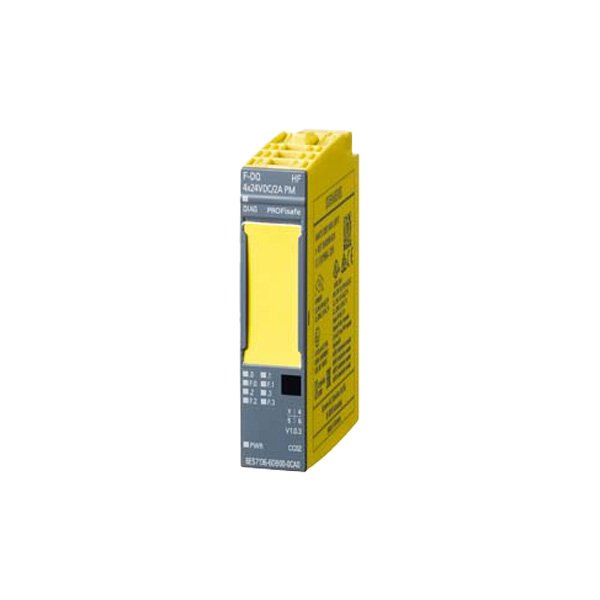

The Siemens SIMATIC ET 200SP F-DQ Safety Digital Output Module (6ES7136-6DB00-0CA0) is a fail-safe digital output module designed for the ET 200SP distributed I/O system. This safety module provides 4 digital outputs with 24V DC/2A switching capability, supporting PM-switching (SIL3/Cat.4/PLe) safety standards. Featuring comprehensive diagnostic functions including short-circuit detection, wire break monitoring, and load voltage missing detection, it ensures reliable operation in safety-critical applications. The module includes LED status indicators for each channel and supports direct interconnection to F-DI modules for enhanced safety functionality. With its compact 15mm width and hot-swap capability, this module offers versatile output control for machine safety, process automation, and emergency stop systems.
Key Features
- Fail-Safe Digital Output Module for ET 200SP distributed I/O system
- 4 digital outputs, 24V DC/2A per output
- PM-switching (source output), SIL3/Cat.4/PLe safety class
- Comprehensive diagnostics: short-circuit, wire break, load voltage missing
- LED status indicators for each channel (green/red)
- Diagnostic display (DIAG red/green LED)
- Direct interconnection to F-DI modules possible
- Channel-specific or module-wide passivation
- Compact design, 15mm width
- Hot-swap capable
- DIN rail mounting
- Country of origin: Germany
Technical Specifications
- Number of Outputs: 4 digital outputs
- Output Voltage: 24V DC (19.2-28.8V)
- Output Current: 2A per channel
- Output Type: Source output (PM-switching)
- Safety Class: SIL3 according to IEC 61508, Cat.4/PLe according to ISO 13849-1
- Power Supply: Via backplane (24V DC)
- Power Consumption: 70 mW typical
- Short-Circuit Protection: Yes, >3.3A response threshold
- Open Circuit Detection: Yes, 8 mA response threshold
- Overload Protection: Yes
- Operating Temperature: 0°C to +60°C (horizontal), 0°C to +50°C (vertical)
- Dimensions: 15mm × 73mm × 58mm (W × H × D)
- Weight: approx. 57g
- Protection Degree: IP20
- Address Space: 5 bytes
- Isolation: 707V DC tested
- Standards: IEC 61131, EN 61000-6-2, EN 61000-6-4, UL 508, CSA C22.2 No. 142, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC ET 200SP components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine safety systems (emergency stop, safety doors)
- Process automation safety functions
- Safety-related actuator control
- Emergency stop circuits
- Safety monitoring systems
- Critical process control applications
- Building automation safety systems
- Industrial machinery safety control
