Description

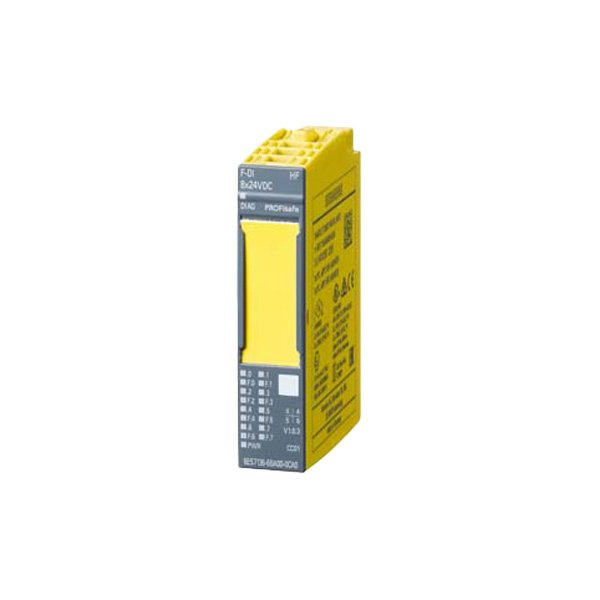

The Siemens SIMATIC ET 200SP F-DI 8x24V DC HF Safety Digital Input Module (6ES7136-6BA00-0CA0) is a safety-oriented digital input module designed for fail-safe applications in industrial automation systems. This high-feature (HF) module provides 8 safe digital inputs with 24V DC sensing capability, meeting safety integrity level SIL 3 according to IEC 61508 and performance level PL e according to ISO 13849-1. The module supports various safety functions including emergency stop, safety door monitoring, and two-hand control. With its compact design, BaseUnit A0 compatibility, and comprehensive diagnostic functions, it ensures reliable safety circuit monitoring in distributed safety applications.
Key Features
- Safety Digital Input Module for ET 200SP distributed I/O system
- 8 safe digital inputs, 24V DC
- Safety standards: SIL 3 (IEC 61508), PL e (ISO 13849-1)
- High Feature (HF) functionality
- Supports safety functions:
- Emergency stop (Category 0, 1)
- Safety door monitoring
- Two-hand control
- Light curtains, safety mats
- Cross-circuit detection
- Diagnostic capability
- BaseUnit A0 compatible
- Compact design, 15mm width
- Country of origin: Germany
Technical Specifications
- Number of Inputs: 8 safe digital inputs
- Input Voltage: 24V DC (20.4-28.8V)
- Input Type: PNP (sourcing)
- Input Current: 3 mA typical
- Response Time: ≤ 20 ms (safe state)
- Safety Standards:
- IEC 61508: SIL 3
- ISO 13849-1: PL e, Category 4
- IEC 62061: SIL CL 3
- Safety Functions Supported:
- Emergency stop (stop category 0, 1)
- Safety door (with/without guard locking)
- Two-hand control (Type II, III)
- Enable switches
- Light curtains, laser scanners
- Safety mats, edges
- Diagnostics:
- Channel fault detection
- Wire-break detection
- Short-circuit detection
- Cross-circuit detection
- Connection: Via BaseUnit A0
- Module Width: 15mm
- Power Supply: Via backplane (24V DC)
- Power Consumption: 1.2W typical
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +70°C
- Dimensions: 15mm × 112mm × 75mm (W × H × D)
- Weight: approx. 0.08 kg
- Protection Degree: IP20
- Certifications: CE, UL, CSA
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for safety system integration
- Safety function configuration assistance
- Compliance verification with safety standards
- Commissioning and validation support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC safety components
- Global supply network with competitive pricing
- Expertise in safety system design and implementation
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine safety systems
- Emergency stop circuits
- Safety door monitoring
- Two-hand control stations
- Light curtain and safety laser scanner interfaces
- Safety mat and edge monitoring
- Robot cell safety
- Press and stamping machine safety
- Conveyor safety systems
- Manufacturing equipment safety
