Description

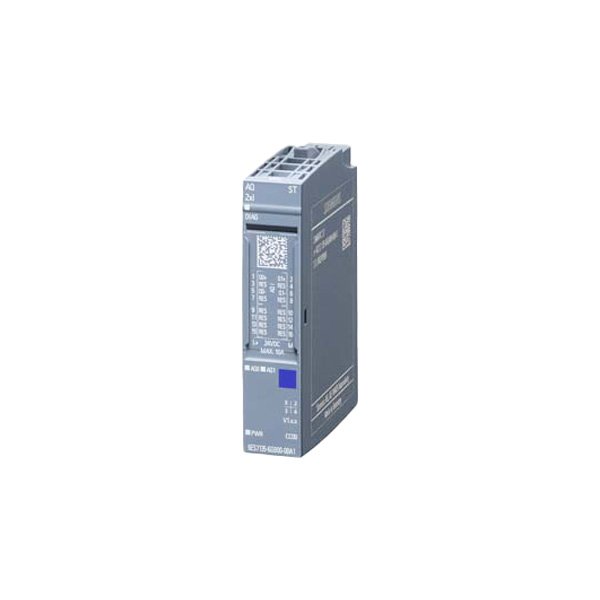

The Siemens SIMATIC ET 200SP Analog Output Module AQ 2xI Standard (6ES7135-6GB00-0BA1) is a high-precision analog output module designed for the ET 200SP distributed I/O system. This module provides 2-channel analog current output with 0/4-20mA range, offering reliable and accurate signal generation for controlling actuators, valves, and other analog devices. Featuring 12-bit resolution and channel-to-channel isolation, it ensures precise output control in industrial automation applications. The compact design with BaseUnit compatibility allows for flexible system configuration, while integrated diagnostics and wire-break detection enhance system reliability and maintenance efficiency.
Key Features
- Analog Output Module for ET 200SP distributed I/O system
- 2-channel analog current output
- Output range: 0/4-20mA
- Resolution: 12 bits
- Channel-to-channel isolation
- Wire-break detection
- Diagnostics capability
- BaseUnit type A0 compatible
- Compact design, 15mm width
- Hot-swap capable
- DIN-rail mounting
- Country of origin: Germany
Technical Specifications
- Number of Channels: 2
- Output Signal Type: Current
- Output Range: 0/4-20mA
- Resolution: 12 bits
- Accuracy: ±0.3% (full scale)
- Load Impedance: 0-500Ω
- Update Time: 1 ms per channel
- Isolation:
- Channel-to-channel: 75V DC
- Channel-to-backplane: 1500V AC
- Diagnostics:
- Wire-break detection
- Short-circuit detection
- Underflow/overflow detection
- Connection: Via BaseUnit A0
- BaseUnit Compatibility: Type A0
- Module Width: 15mm
- Power Supply: Via backplane (24V DC)
- Power Consumption: 0.5W
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +70°C
- Dimensions: 15mm × 112mm × 75mm (W × H × D)
- Weight: approx. 0.05 kg
- Protection Degree: IP20
- Standards: IEC 61131, UL 508
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Parameter setting assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC ET 200SP components
- Global supply network with competitive pricing
- Expertise in analog signal processing systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Actuator and valve control
- Process variable control
- Speed and torque control
- Pressure and flow control
- Temperature control systems
- Level control applications
- Analog signal generation
- Industrial process control
- Building automation systems
- Test and measurement equipment
