6ES7132-6HD01-0BB1

Description

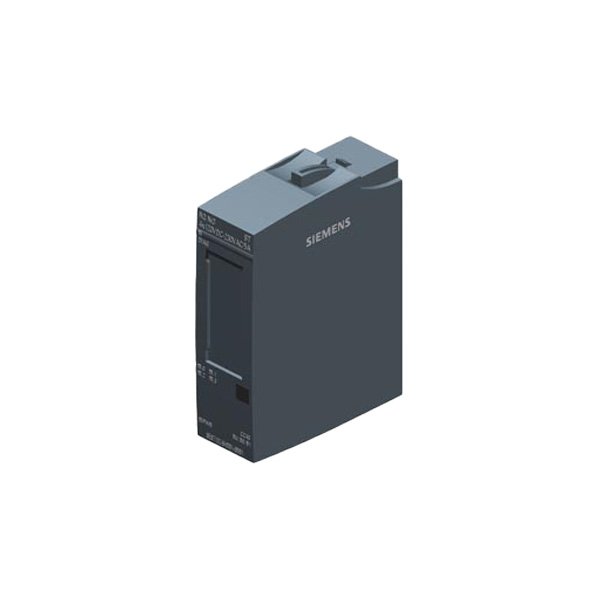

The Siemens SIMATIC ET 200SP Relay Module RQ 4xNO (6ES7132-6HD01-0BB1) is a relay output module for the ET 200SP distributed I/O system. Featuring 4 normally open (NO) relay contacts, this module provides reliable switching of AC loads up to 250V/2A. Designed with compact design and hot-swap capability, it enables easy maintenance and system expansion. The module supports BaseUnit BU-type and includes comprehensive diagnostic functions with LED status indicators. With its robust relay outputs, this module is ideal for controlling motors, valves, and other industrial loads in distributed automation systems.

Key Features​

• Relay Output Module​ for ET 200SP distributed I/O system
• 4 normally open (NO) relay outputs
• Load voltage: 24V DC / 24-240V AC
• Load current: 2A per channel
• Isolation: 1500V AC between circuits and backplane bus
• Configuration via STEP 7 TIA Portal
• Diagnostic functions with LED status indicators
• Hot-swap capability during operation
• Compact design, 15mm width per module
• DIN rail mounting
• Country of origin: Germany

Technical Specifications​

• Output Type: Relay, normally open (NO)
• Number of Channels: 4
• Load Voltage:
  • DC: 24V
  • AC: 24-240V, 50/60Hz
• Load Current: 2A per channel
• Contact Type: Normally open (NO)
• Switching Frequency:
  • AC load: 3 Hz
  • DC load: 10 Hz
• Switching Capacity:
  • AC-15: 240V/2A
  • DC-13: 24V/2A
• Electrical Isolation: 1500V AC between circuits and backplane
• Diagnostics: Channel status LED
• BaseUnit Compatibility: BU-type
• Dimensions: 15mm × 112mm × 75mm (W×H×D)
• Operating Temperature: -20°C to +60°C
• Protection Degree: IP20

Warranty & After-Sales​

• Factory new units: 12 months warranty
• Refurbished units: 3-6 months warranty
• Technical support for configuration and integration
• System compatibility verification
• Installation and commissioning assistance available

Delivery Time​

• Standard delivery: 3-5 working days
• Express shipping available upon request

Why Choose Our Store​

• Genuine Siemens SIMATIC ET 200SP components
• Global supply network with competitive pricing
• Expertise in distributed I/O systems
• Comprehensive technical documentation
• Responsive customer service and support

Applications​

• Motor starter control
• Valve and actuator control
• Lighting control systems
• Heating element control
• Conveyor system control
• Pump and compressor control
• Industrial alarm systems
• Safety interlock circuits
• Machine control panels
• Building automation systems
