Description

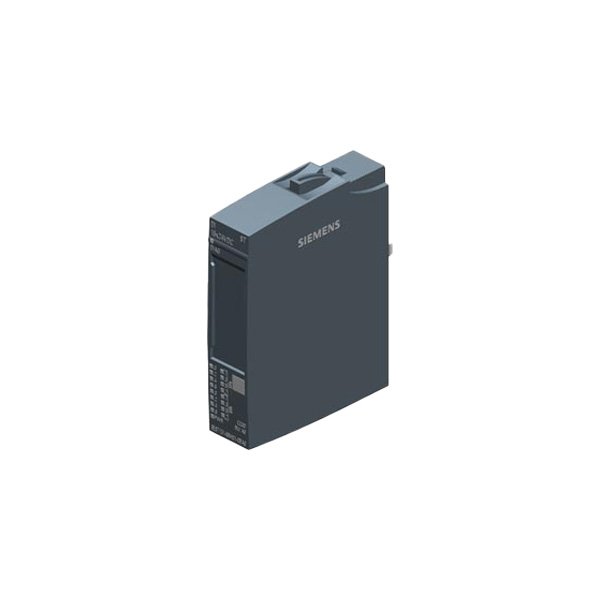

The Siemens SIMATIC ET 200SP Digital Input Module DI 16x24V DC Standard (6ES7131-6BH01-0BA0) is a high-density digital input module designed for the ET 200SP distributed I/O system. This standard module provides 16 digital inputs with 24V DC sensing capability, offering efficient signal acquisition for industrial automation applications. Featuring 2-wire proximity sensor (BERO) connection capability and comprehensive diagnostic functions, it ensures reliable operation in distributed control systems. The compact design with BaseUnit A0 compatibility allows for space-saving installation in control cabinets. With channel-to-channel isolation and LED status indicators, this module provides versatile input capabilities for machine control, process automation, and building management systems.
Key Features
- Digital Input Module for ET 200SP distributed I/O system
- 16 digital inputs, 24V DC
- 2-wire BERO (proximity sensor) connection capability
- Standard functionality
- Diagnostic capability
- Channel-to-channel isolation
- LED status indicators for each channel
- BaseUnit A0 compatible
- Compact design, 15mm width
- Hot-swap capable
- DIN rail mounting
- Country of origin: Germany
Technical Specifications
- Number of Inputs: 16 digital inputs
- Input Voltage: 24V DC (20.4-28.8V)
- Input Type: Sink/source (PNP/NPN) compatible
- Input Current: 3 mA typical (2.5 mA at 24V DC)
- Input Delay: 3 ms typical
- BERO Connection: Supports 2-wire proximity sensors
- Isolation:
- Channel-to-channel: 75V DC
- Channel-to-backplane: 1500V AC
- Diagnostics:
- Wire-break detection (with BERO)
- Short-circuit detection
- Connection: Via BaseUnit A0
- BaseUnit Compatibility: Type A0
- Module Width: 15mm
- Power Supply: Via backplane (24V DC)
- Power Consumption: 1.0W typical
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +70°C
- Dimensions: 15mm × 112mm × 75mm (W × H × D)
- Weight: approx. 0.05 kg
- Protection Degree: IP20
- Standards: IEC 61131, UL 508
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC ET 200SP components
- Global supply network with competitive pricing
- Expertise in digital input signal processing
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Limit switch monitoring
- Pushbutton and selector switch inputs
- Proximity sensor (BERO) connection
- Safety door monitoring
- Machine status monitoring
- Conveyor system control
- Pump and fan status monitoring
- Lighting control systems
- Building automation
- Small machine control
