Description

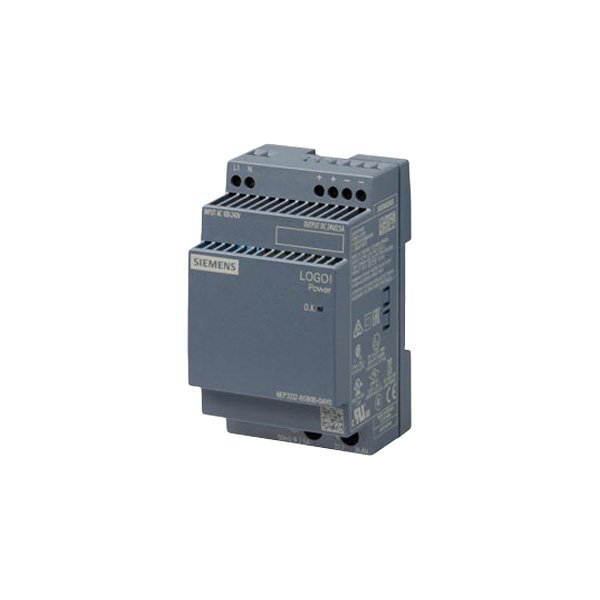

The Siemens LOGO!POWER 24V/2.5A Power Supply (6EP3332-6SB00-0AY0) is a switched-mode DIN rail power supply designed for industrial automation applications. This compact power supply offers 24V DC output with 2.5A current rating, providing reliable power for control systems, sensors, and small automation devices. With wide input voltage range of 100-240V AC, it ensures stable operation across varying power conditions. The miniature design in the same form factor as LOGO!8 modules allows for space-efficient installation in control panels and distribution boards. High efficiency up to 90% across the entire load range and low power loss in no-load operation make this power supply ideal for energy-conscious applications.
Key Features
- Switched-mode power supply for industrial automation
- Output: 24V DC / 2.5A
- Input voltage: 100-240V AC
- Compact dimensions: 54 x 53 x 90mm
- DIN rail mounting or wall mounting
- High efficiency: up to 90%
- Operating temperature: -25°C to +70°C
- Output voltage adjustment: 22.2-26.4V DC
- Low power loss: <0.3W in no-load operation
- Wide input range for global use
- Power reserve for capacitive loads
- Simple output current measurement
- Comprehensive certifications: CE, UL, CSA, FM
- Country of origin: Austria
Technical Specifications
- Input Voltage: 100-240V AC
- Output Voltage: 24V DC ±3%
- Output Current: 2.5A
- Output Power: 60W
- Efficiency: 90%
- Ripple and Noise: 200mV Pk-Pk
- Load Regulation: ±0.5%
- Input Frequency: 50/60Hz
- Inrush Current: <25A
- Hold-up Time: >40ms at 187V
- Protection: Overload, short circuit, overvoltage
- Isolation: 4kV AC input to output
- MTBF: 2,864,520 hours
- Standards: CE, UL 508, UL 60950, CSA C22.2, FM Approval
- Protection Degree: IP20
- Cooling: Natural convection
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for system integration
- Compatibility verification with existing systems
- Commissioning assistance available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens LOGO!POWER components
- Global supply network with competitive pricing
- Expertise in industrial power supply systems
- Comprehensive technical documentation
- Support for legacy system maintenance
Applications
- Industrial control systems
- PLC and automation systems
- Sensor and actuator power supply
- Small motor control applications
- Control panel power distribution
- Machine automation
- Process control systems
- Building automation
- HVAC systems
- Conveyor systems
- Packaging machinery
- Material handling equipment
