Description

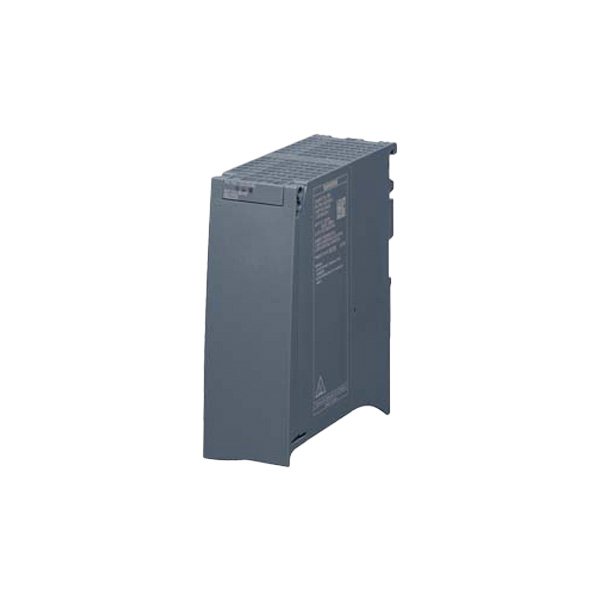

The Siemens SIMATIC PM 1507 Power Supply 24V/3A (6EP1332-4BA00) is a compact DIN rail mounted power supply unit designed specifically for SIMATIC S7-1500 automation systems. This high-quality power supply delivers 24V DC output with 3A current capacity, providing stable and reliable power to SIMATIC S7-1500 CPU and I/O modules. With its 1-phase AC input (120/230V AC) and high efficiency up to 89%, it ensures energy-efficient operation. The compact design allows for space-saving installation in control cabinets, while the integrated diagnostics LED provides clear operational status indication. Designed to seamlessly integrate with S7-1500 systems, it offers perfect compatibility and performance optimization for industrial automation applications.
Key Features
- Compact Power Supply for SIMATIC S7-1500 systems
- Output: 24V DC / 3A (72W)
- Input: 120/230V AC (85-264V range)
- High efficiency: up to 89%
- Integrated diagnostics LED
- Compact design for space-saving installation
- DIN rail mounting (35mm)
- Suitable for SIMATIC S7-1500 CPU and I/O modules
- Short-circuit and overload protection
- Overvoltage protection
- Operating temperature: 0°C to +60°C
- Country of origin: Germany
Technical Specifications
- Input Voltage: 120/230V AC (85-264V AC, 47-63 Hz)
- Output Voltage: 24V DC (24-28.8V adjustable)
- Output Current: 3A continuous
- Output Power: 72W
- Efficiency: Up to 89%
- Power Boost: 4.5A for 5 seconds
- Ripple and Noise: 100mV P-P maximum
- Line Regulation: ±1.0%
- Load Regulation: ±2.0%
- Protection Features:
- Overload protection (constant current limiting)
- Short-circuit protection
- Overvoltage protection (28.8-30.8V)
- Operating Temperature: 0°C to +60°C (40°C at full load)
- Storage Temperature: -40°C to +85°C
- Cooling: Natural convection
- Isolation: 1500V AC input to output
- Dimensions: 60mm × 125mm × 120mm (W × H × D)
- Weight: approx. 0.85 kg
- Protection Degree: IP20
- Standards:
- Safety: IEC/EN/UL 60950-1, IEC/EN 62477-1
- EMC: EN 55011 Class A, EN 61000-6-2, -6-4
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for system integration
- Installation and wiring assistance
- Compatibility verification with SIMATIC S7-1500 systems
- Commissioning assistance available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC power supply components
- Global supply network with competitive pricing
- Expertise in industrial automation power systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- SIMATIC S7-1500 PLC systems
- Industrial automation control cabinets
- Machine control systems
- Process automation equipment
- Distributed I/O system power
- Sensor and actuator power supply
- Safety system power supply
- Manufacturing execution systems
- Building automation control panels
- Test and measurement equipment
