Description

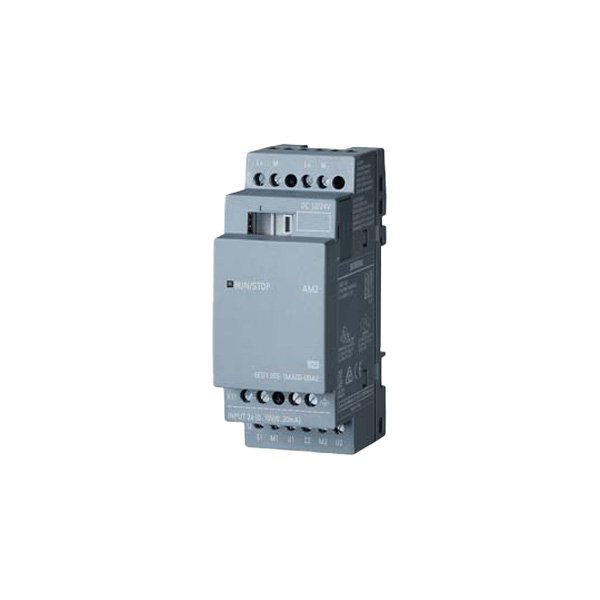

The Siemens LOGO! AM2 Analog Expansion Module (6ED1055-1MA00-0BA2) is a compact analog input module designed for the LOGO! 8 series of programmable logic controllers. This expansion module provides 2 analog inputs that can be configured for voltage (0-10V) or current (0/4-20mA) signals, making it ideal for industrial automation applications requiring analog signal acquisition. Operating with a 12/24V DC power supply, this module features screw/spring clamp connections for secure wiring and supports a wide input voltage range from 10.8V to 28.8V DC. With its compact design and DIN rail mounting, this module enables flexible expansion of LOGO! 8 systems for various automation tasks.
Key Features
- Analog Expansion Module for LOGO! 8 series
- 2 analog inputs configurable for voltage or current signals
- Input ranges: 0-10V voltage or 0/4-20mA current
- Power supply: 12/24V DC (10.8-28.8V DC range)
- Screw/spring clamp connection terminals
- Compact dimensions: 35.5mm x 90mm x 58mm
- DIN rail mounting (2 spacing units wide)
- IP20 protection degree
- LED status indicators
- Seamless integration with LOGO! 8 basic modules
- Easy configuration via LOGO! Soft Comfort software
- CE, CSA, UL, FM certifications
- Country of origin: Germany
Technical Specifications
- Analog Inputs: 2 channels
- Input Signal Types: Voltage (0-10V) or Current (0/4-20mA)
- Power Supply: 12/24V DC (10.8-28.8V DC)
- Current Consumption: 30mA typical
- Resolution: 10-bit
- Connection Type: Screw/spring clamp terminals
- Mounting: 35mm DIN rail (2 spacing units wide)
- Dimensions: 35.5mm x 90mm x 58mm
- Weight: 0.13kg
- Protection Degree: IP20
- Operating Temperature: -20°C to +55°C (no condensation)
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: CE, CSA, UL, FM, IEC 61131, VDE 0631
- Marine Approval: Yes
- Global Warming Potential: 16.5kg CO2 eq total
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for system integration
- Configuration assistance via LOGO! Soft Comfort
- Compatibility verification with existing systems
- Commissioning assistance available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens LOGO! components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Support for legacy system maintenance
Applications
- Industrial process monitoring
- Temperature and pressure measurement
- Level monitoring in tanks and silos
- Flow rate measurement
- Analog sensor signal acquisition
- Building automation systems
- HVAC control applications
- Small automation projects
- Machine control systems
- Conveyor system monitoring
- Pump and motor control
- Material handling systems
