Description

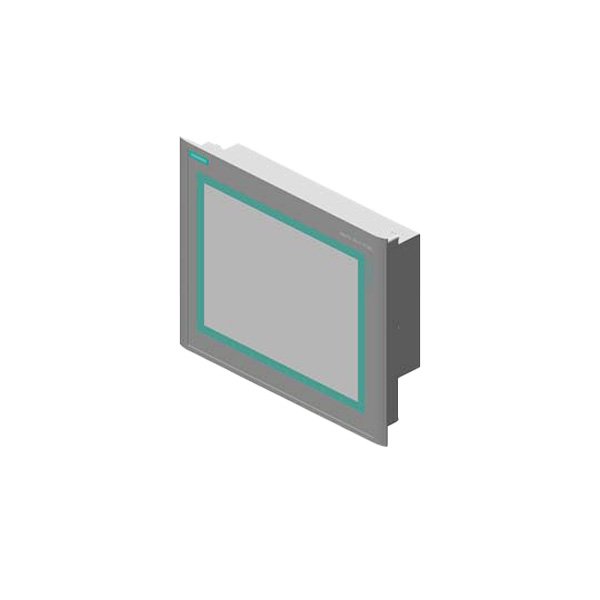

The Siemens SIMATIC MP 377 12″ Touch Multi Panel (6AV6644-0AA01-2AX0) is a high-performance human-machine interface (HMI) panel designed for industrial automation applications requiring complex operator interface tasks. This 12.1-inch touch panel features a TFT color display with 800×600 pixel resolution and 65,536 colors, providing clear and intuitive operator interaction. Based on Windows CE 5.0 operating system, it offers comprehensive functionality for PROFIBUS DP networks and PROFINET environments. The panel includes 12 MB user data memory and 128 MB RAM, supporting advanced HMI concepts with Smart options. With front IP65 protection and multiple communication interfaces, it delivers reliable performance in demanding industrial environments.
Key Features
- 12.1″ Touch Multi Panel with TFT color display
- 800×600 pixel resolution, 65,536 colors
- Windows CE 5.0 operating system
- 12 MB user data memory, 128 MB RAM
- Analog resistive touchscreen
- Front IP65 protection, rear IP20
- Supports PROFINET IO, PROFIBUS, EtherNet/IP
- 2x Ethernet, 2x USB, RS422/RS485 interfaces
- CF card and SD/MMC card slots
- 24V DC power supply, 36W
- Country of origin: Germany
Technical Specifications
- Display: 12.1″ TFT color screen
- Resolution: 800×600 pixels
- Colors: 65,536 colors
- Touchscreen: Analog resistive
- Operating System: Windows CE 5.0
- Memory: 12 MB user data, 128 MB RAM
- Power Supply: 24V DC, 1.5A, 36W
- Interfaces:
- 2x Ethernet (RJ45)
- 2x USB (up to 1 GB)
- 1x RS422/RS485
- 1x CF card slot
- 1x SD/MMC card slot (up to 128 MB)
- Protection Class: Front IP65, Rear IP20, NEMA 4/12
- Mounting: Vertical, max tilt angle ±35°
- Operating Temperature: 0°C to +50°C
- Humidity: Up to 90% relative humidity
- Dimensions: 40.80 × 53.50 × 17.90 cm (packaging)
- Weight: approx. 4.96 kg
- Protocols: PROFINET IO, PROFIBUS, EtherNet/IP, MPI, MODBUS, TCP/IP, Sm@rtServer
- Certifications: CE, UL, CSA, FM Class I Div. 2
- Standards: IEC compliant, RoHS compliant
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- Wiring and installation assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC MP 377 components
- Global supply network with competitive pricing
- Expertise in industrial automation systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Industrial automation systems
- Production line monitoring and control
- Integration with Siemens PLC systems
- Machine automation and process control
- Building automation systems
- Food, chemical, automotive, energy industries
- Operator interface for complex HMI tasks
