Description

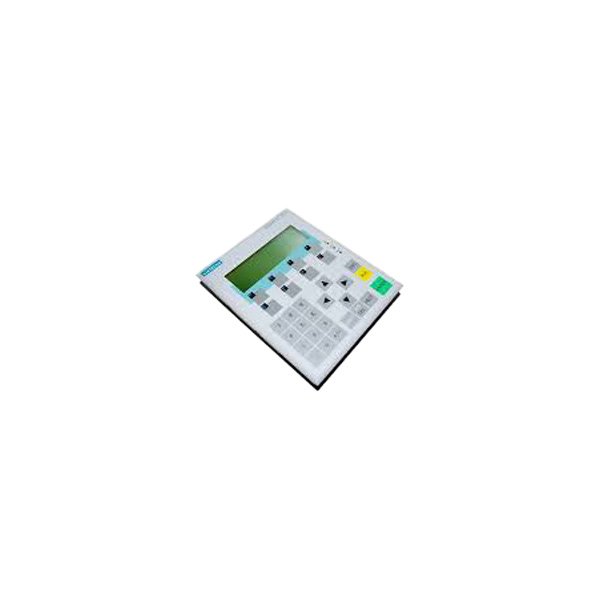

The Siemens SIMATIC OP7/DP Operator Panel (6AV3607-1JC20-0AX1) is a compact and versatile operator interface designed for industrial automation systems. This 4-line text display with 20 x 4 character capacity provides clear visualization of process data and alarm messages. Featuring 24 function keys (8 with LED indicators) and a 6-key navigation cluster, it offers intuitive operation and monitoring capabilities. The integrated PROFIBUS DP interface enables direct communication with SIMATIC S7 controllers, while the built-in memory (128KB) stores recipes and screen configurations. With IP65 front panel protection and rugged metal housing, this operator panel is designed for reliable operation in harsh industrial environments.
Key Features
- Compact Operator Panel for industrial automation
- Display: 4 lines, 20 characters per line
- Function keys: 24 keys (8 with LED indicators)
- Navigation: 6-key navigation cluster
- Communication: PROFIBUS DP interface
- Memory: 128KB for recipes and configurations
- Programming: PROTOOL/ProSave configuration software
- Protection: IP65 front panel
- Housing: Metal construction
- Power supply: 24V DC
- Mounting: Panel cutout installation
- Country of origin: Germany
Technical Specifications
- Display Type: STN LCD with backlight
- Display Area: 4 lines × 20 characters
- Character Height: 5.8 mm
- Function Keys: 24 (8 with integrated LEDs)
- Navigation Keys: 6 (up, down, left, right, ESC, ENTER)
- Communication Interface: PROFIBUS DP (9-pin D-SUB)
- Data Transfer Rate: 9.6 kbps to 12 Mbps
- Memory Capacity: 128KB
- Power Supply: 24V DC (20.4-28.8V)
- Current Consumption: 120 mA typical
- Power Consumption: 2.9W typical
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +60°C
- Front Panel Protection: IP65/NEMA 4
- Housing Material: Metal
- Dimensions: 192mm × 108mm × 43mm (H × W × D)
- Panel Cutout: 178mm × 94mm
- Weight: approx. 0.7 kg
- Certifications: CE, UL, CSA
Warranty & After-Sales
- Factory new units: 12 months warranty
- Refurbished units: 3-6 months warranty
- Technical support for configuration and integration
- PROTOOL/ProSave programming assistance
- Compatibility verification with existing systems
- Commissioning and diagnostics support available
Delivery Time
- Standard delivery: 3-5 working days
- Express shipping available upon request
Why Choose Our Store
- Genuine Siemens SIMATIC operator panel components
- Global supply network with competitive pricing
- Expertise in industrial HMI systems
- Comprehensive technical documentation
- Responsive customer service and support
Applications
- Machine operation and monitoring
- Process control visualization
- Production data display
- Alarm and event indication
- Recipe management
- System status monitoring
- Maintenance and diagnostics
- Quality control systems
- Small automation systems
- Legacy system upgrades
